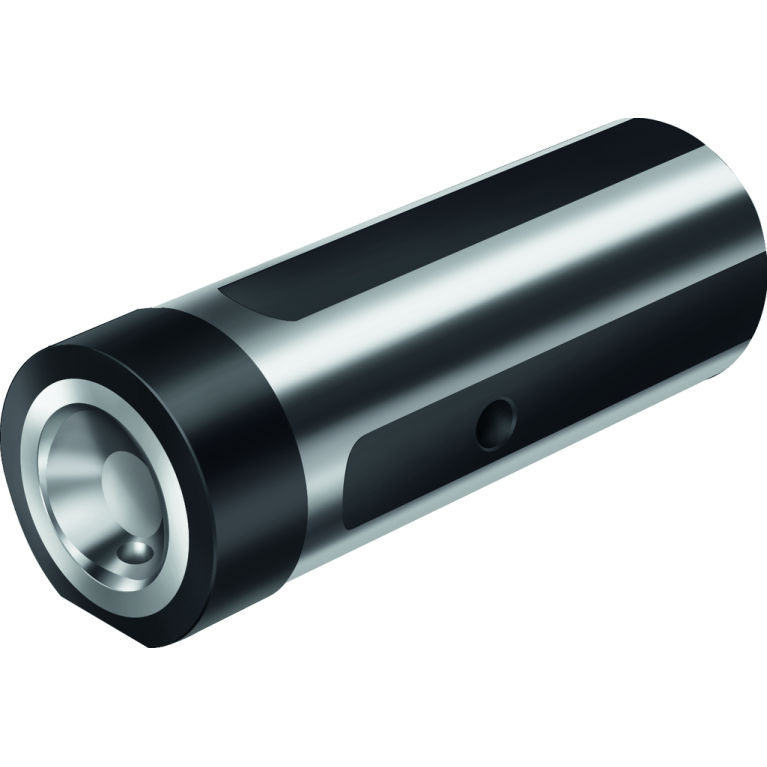

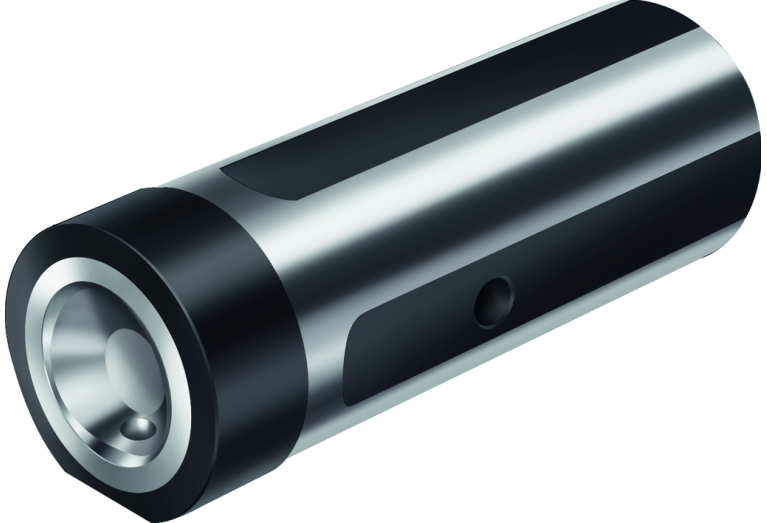

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C4-NC3000-10020-A24

C4-NC3000-10020-A24

C4-NC3000-10020-A24 C4-NC3000-10020-A24 C4-NC3000-10020-A24

C4-NC3000-10020-A24

Walter
Артикул: 5029313
В наличии
В корзину
Описание
Характеристики
CCFWS Form
03
CCSWS Style
5
CCTWS Type
CCS
CCUWS Unit base
9
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial
CZCWS Size code
0400
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL15002235
FamilyProducts
Clamping units TYP 3000
HAND Cutting direction
N - Neutral
ID Technical product number
5029313
Interface codes
J6 / J61
ISO
ZYL22S1500$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree

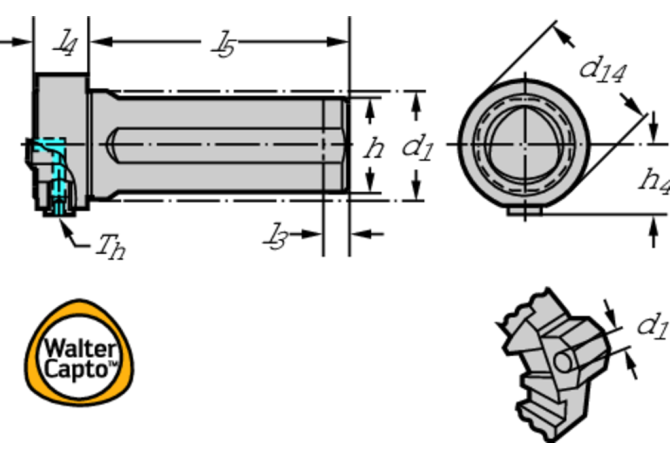

LF Functional length
20 mm
LOC-01 CCFWS Form
03
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0400
LOC-01 ISO
CCS03C0400****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS04000395
LOC-02 CCFWS Form
03
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0400
LOC-02 ISO
CCS01C0400****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS04000195
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
ZYL22S1500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL15002235
LPR Protruding length
100 mm
Name Identifying order number
C4-NC3000-10020-A24
OAH Overall height
52.25 mm
OAL Overall length
120 mm
OAW Overall width
51.5 mm
STDNO Standard
ISO26623-2
WF Functional width
0 mm
WT Weight of item
1.054 kg
