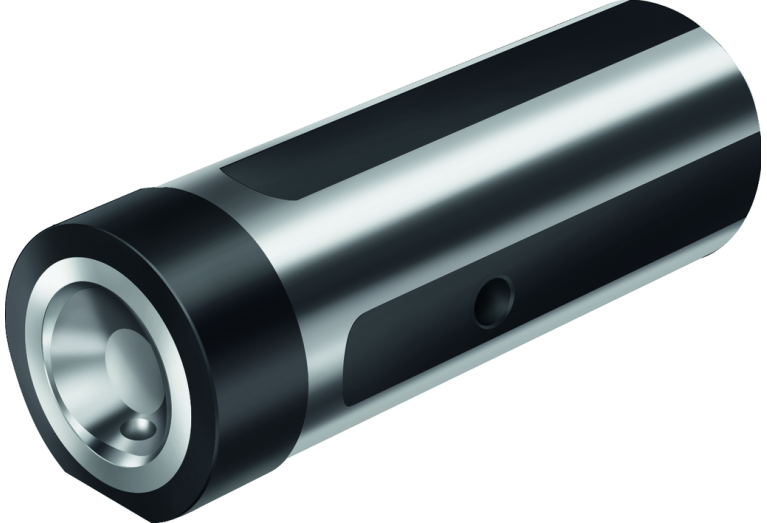

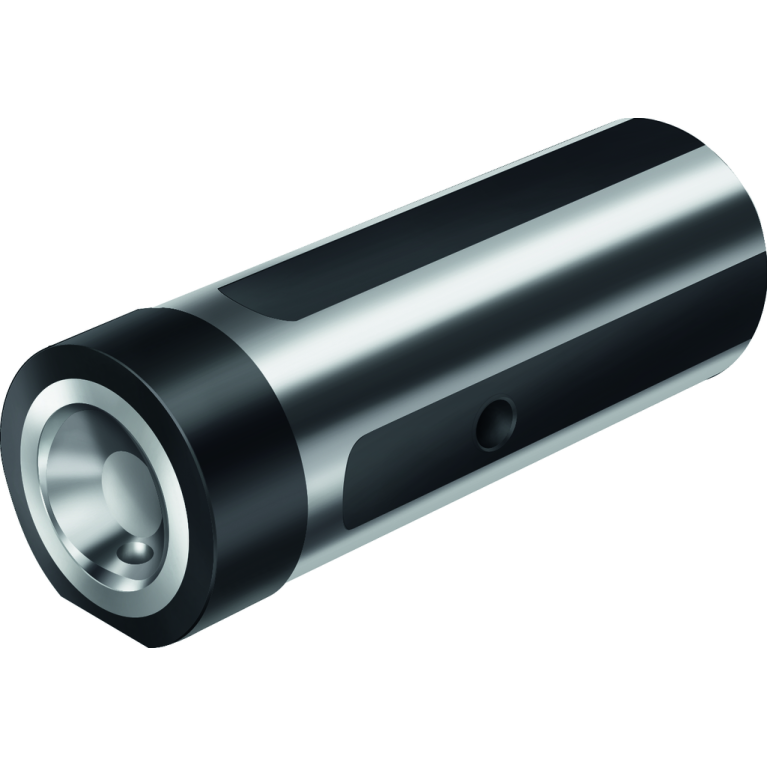

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C5-NC2000-12024-A32

C5-NC2000-12024-A32

C5-NC2000-12024-A32 C5-NC2000-12024-A32 C5-NC2000-12024-A32

C5-NC2000-12024-A32

Walter
Артикул: 5029312
В наличии
В корзину
Описание
Характеристики
CCFWS Form
01
CCSWS Style
5
CCTWS Type
CCS
CCUWS Unit base
9
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial
CZCWS Size code
0500
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL20002235
FamilyProducts
Clamping units Typ 3000 / 2000 / 20.5
HAND Cutting direction
N - Neutral
ID Technical product number
5029312
Interface codes
J6 / J61
ISO
ZYL22S2000$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LF Functional length
24 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0500
LOC-01 ISO
CCS01C0500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS05000195
LOC-02 CCFWS Form
01
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0500
LOC-02 ISO
CCS02C0500****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS05000295
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03 ISO
ZYL22S2000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL20002235
LPR Protruding length
24 mm
LS Shank length
120 mm
Name Identifying order number
C5-NC2000-12024-A32
OAH Overall height
62.25 mm
OAL Overall length
144 mm
OAW Overall width
61.5 mm
STDNO Standard
ISO26623-2
WF Functional width
0 mm
WT Weight of item
2.1 kg
