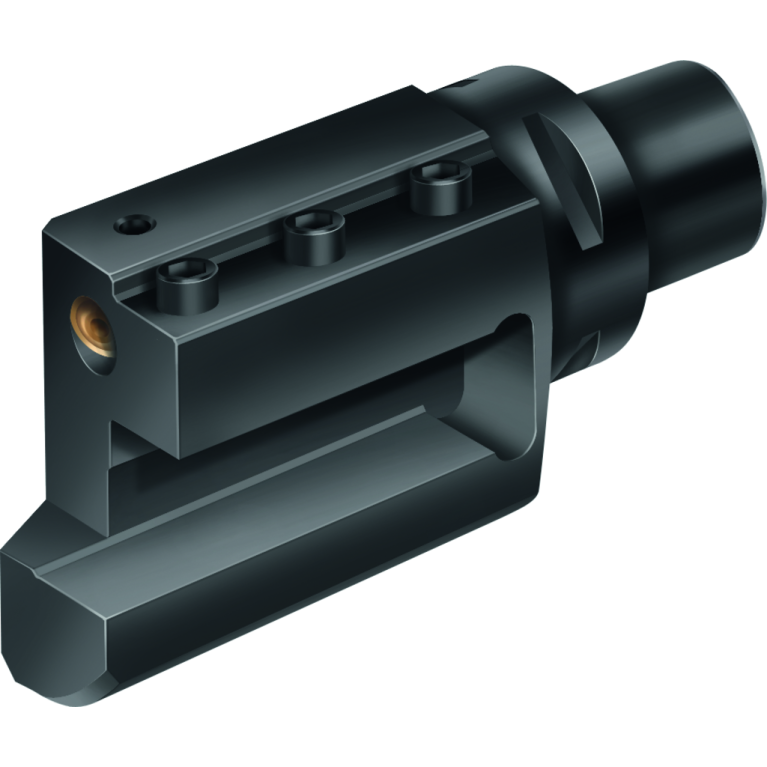

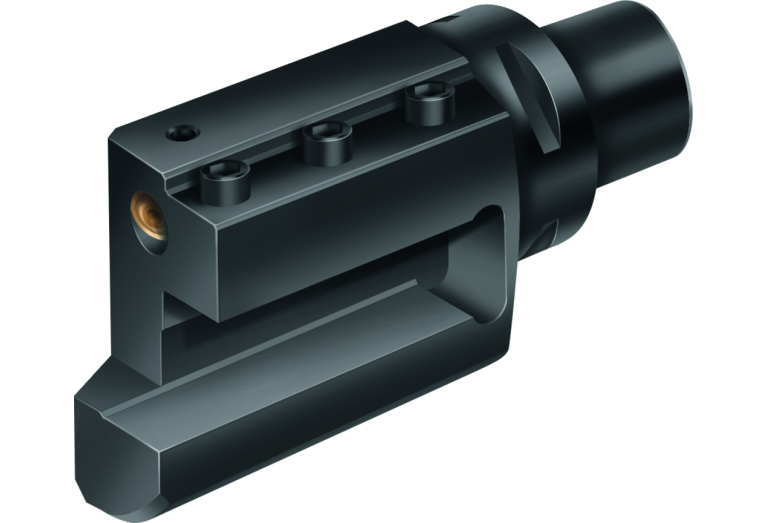

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C5-ASHL-30098-20

C5-ASHL-30098-20

C5-ASHL-30098-20 C5-ASHL-30098-20 C5-ASHL-30098-20 C5-ASHL-30098-20

C5-ASHL-30098-20

Walter
Артикул: 5097410
В наличии
В корзину
Описание
Характеристики
CCFWS Form
01
CCSWS Style
5
CCTWS Type
VKT
CCUWS Unit base
0
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
2012
DCONXWS Connection diameter max
202.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000185
FamilyProducts
Axial adaptor C.-ASH
HAND Cutting direction
L - Left
HF Functional height
20 mm
ID Technical product number
5097410
Interface codes
J6 / J61
ISO
CCS01C0500$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LB Body length 1
78 mm

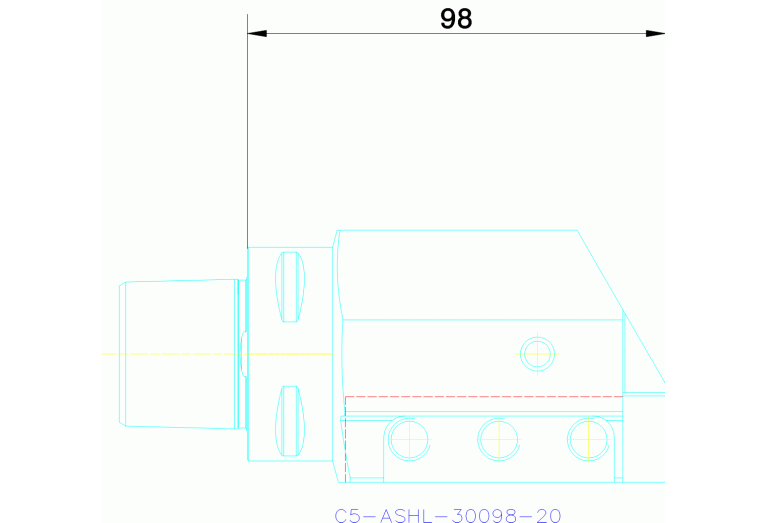

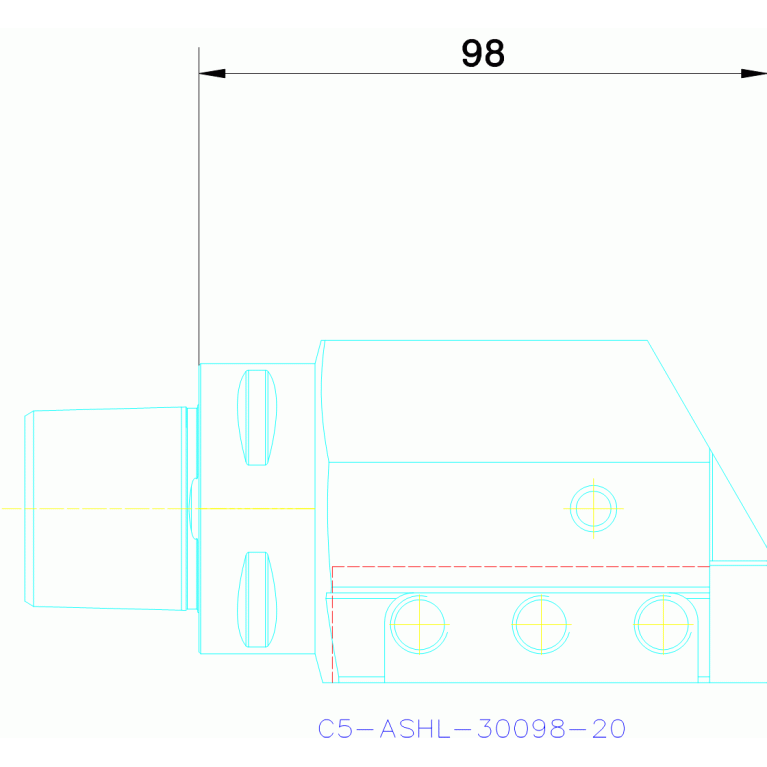

LF Functional length
98 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
VKT Square mounting
LOC-01 CCUWS Unit base
0 Metric
LOC-01 CZCWS Size code
2012
LOC-01 DCONXWS Connection diameter max
202.2 mm
LOC-01 ISO
VKT01A2012****VKT01A2022****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
VKT20120105VKT20220105
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LPR Protruding length
98 mm
Name Identifying order number
C5-ASHL-30098-20
OAH Overall height
74 mm
OAL Overall length
128 mm
OAW Overall width
59 mm
RADH Radial height
41 mm
RADW Radial width
30 mm
STDNO Standard
ISO26623-1
WF Functional width
10 mm
WT Weight of item
2.198 kg
