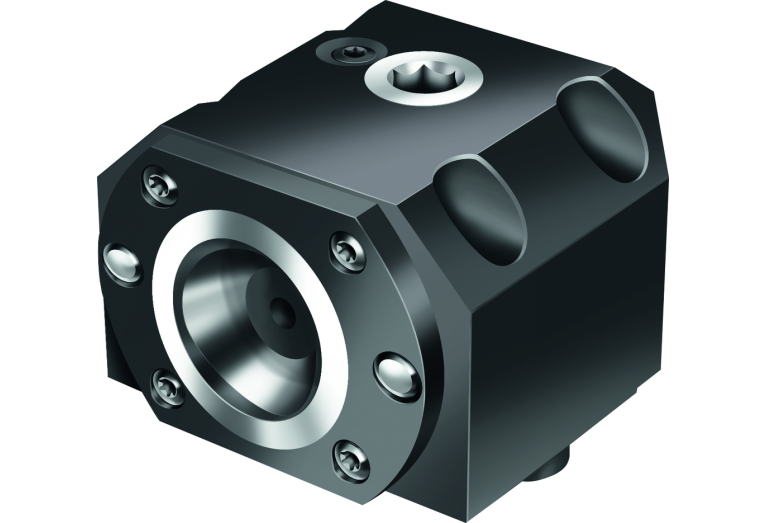

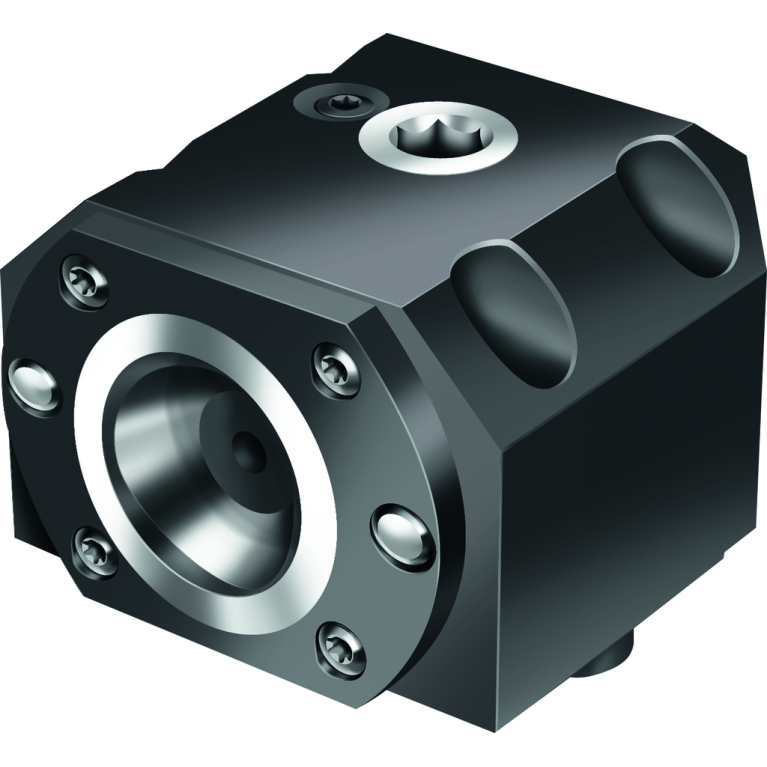

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C4-LC2090-24043A

C4-LC2090-24043A

Артикул: 5012433

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

CCS

CCUWS Unit base

CNSC Coolant entry style code

6 - With coolant supply (discharge), peripheral/decentralized via flange

COMPC Company code

W - Walter

CXSC Coolant exit style code

2 - With Coolant exit, radial

CZCWS Size code

0400

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FLC16551095

FamilyProducts

Clamping units TYP 2090

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

5012433

Interface codes

J6 / J61

ISO

FLC10C1655$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LB Body length 1

48 mm

LF Functional length

24 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0400

LOC-01 ISO

CCS01C0400****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS04000195

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-02 CCUWS Unit base

9 non-dimensional size with coolant

LOC-02 CZCWS Size code

0400

LOC-02 ISO

CCS02C0400****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS04000295

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

FLC Flange mounting SANDVIK Coromant

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

1655

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

FLC10C1655$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FLC16551095

LPR Protruding length

48 mm

Name Identifying order number

C4-LC2090-24043A

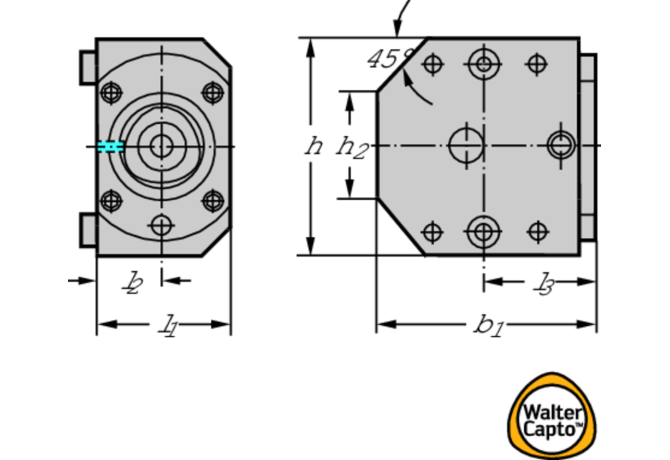

OAH Overall height

77 mm

OAL Overall length

48 mm

OAW Overall width

86 mm

STDNO Standard

ISO26623-2

WF Functional width

43 mm

WT Weight of item

2.01 kg
