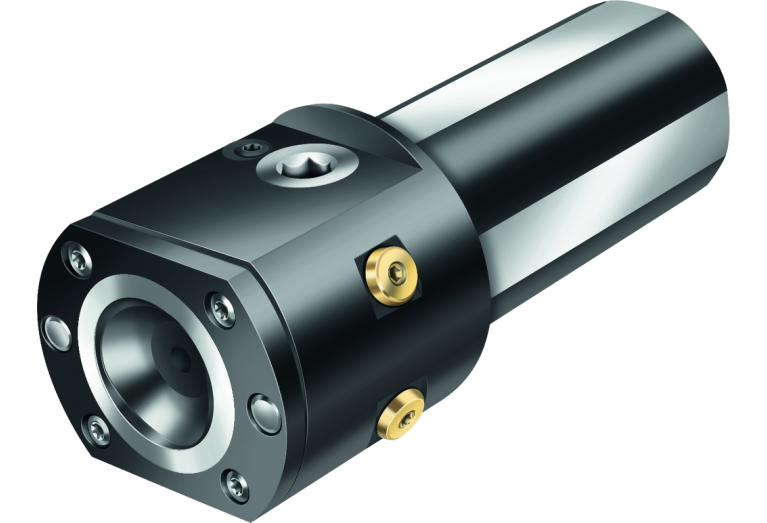

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C5-RC2055-00085M

C5-RC2055-00085M

Артикул: 5012426

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

CCS

CCUWS Unit base

CNSC Coolant entry style code

6 - With coolant supply (discharge), peripheral/decentralized via flange

COMPC Company code

W - Walter

CXSC Coolant exit style code

2 - With Coolant exit, radial

CZCWS Size code

0500

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL05002215

FamilyProducts

Clamping units Typ 3000 / 2000 / 20.5

HAND Cutting direction

R - Right

ID Technical product number

5012426

Interface codes

J6 / J61

ISO

ZYL22G5000$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

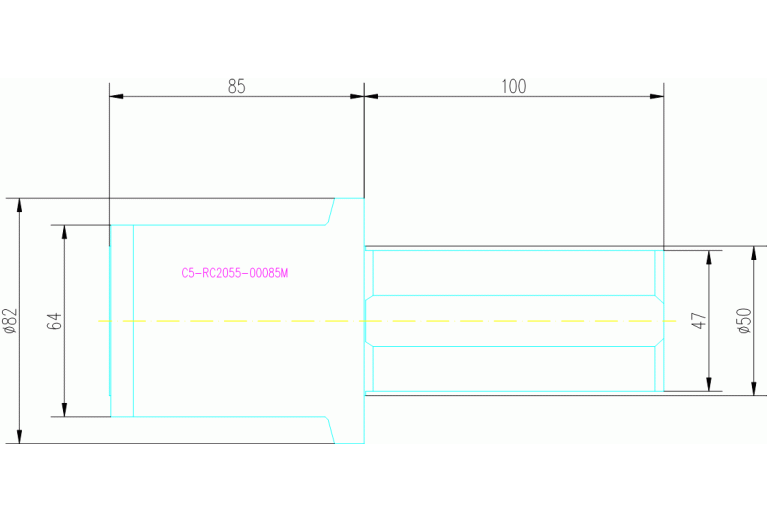

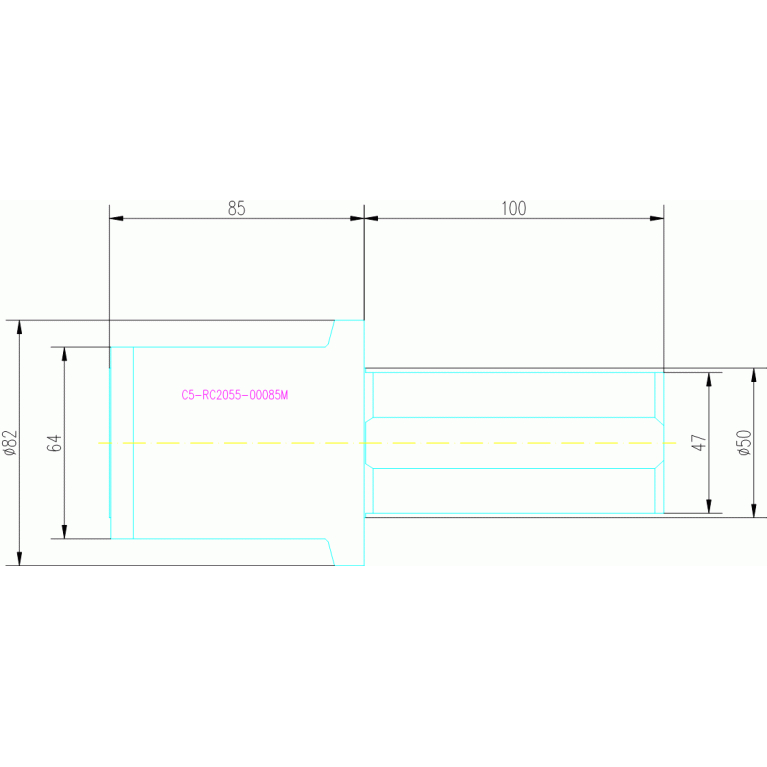

LF Functional length

85 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0500

LOC-01 ISO

CCS02C0500****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS05000295

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-02 CCUWS Unit base

9 non-dimensional size with coolant

LOC-02 CZCWS Size code

0500

LOC-02 ISO

CCS01C0500****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS05000195

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

ZYL22G5000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05002215

LPR Protruding length

85 mm

Name Identifying order number

C5-RC2055-00085M

OAH Overall height

83.4 mm

OAL Overall length

182 mm

OAW Overall width

64 mm

STDNO Standard

ISO26623-2

WF Functional width

0 mm

WT Weight of item

4.326 kg
