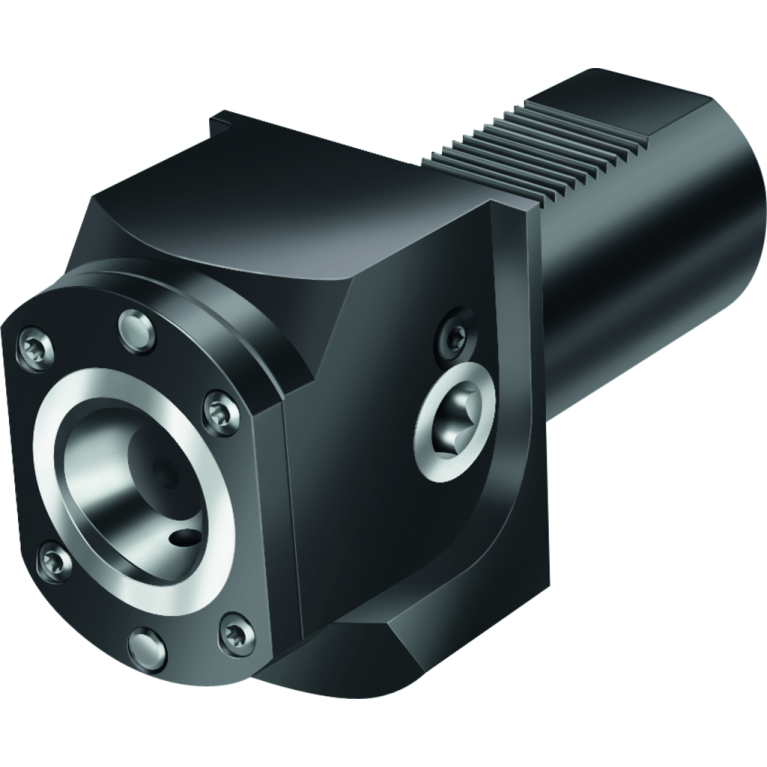

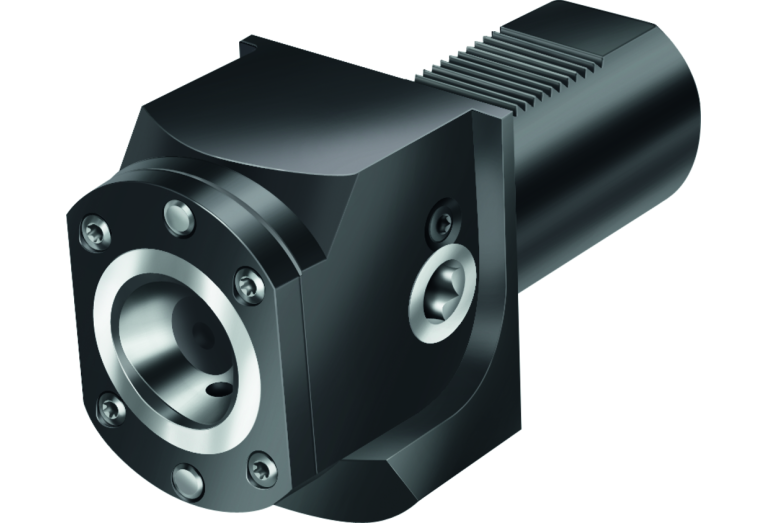

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C6-LC2060-00095

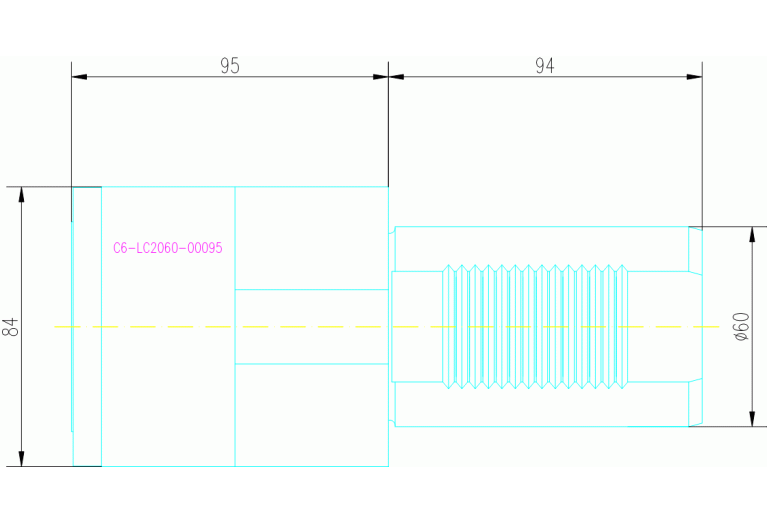

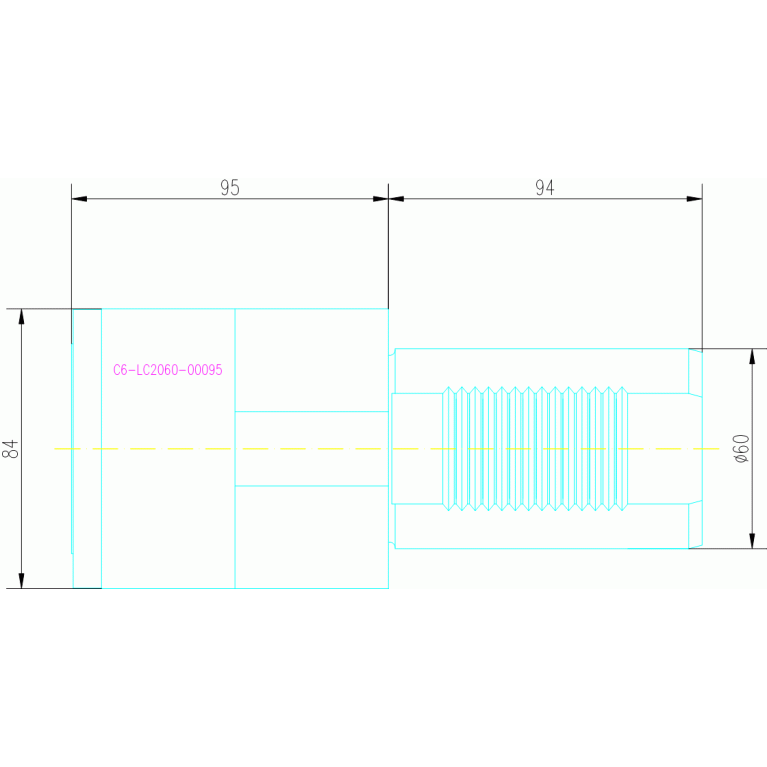

C6-LC2060-00095

C6-LC2060-00095 C6-LC2060-00095 C6-LC2060-00095 C6-LC2060-00095

C6-LC2060-00095

Walter
Артикул: 5012403
В наличии
В корзину
Описание
Характеристики

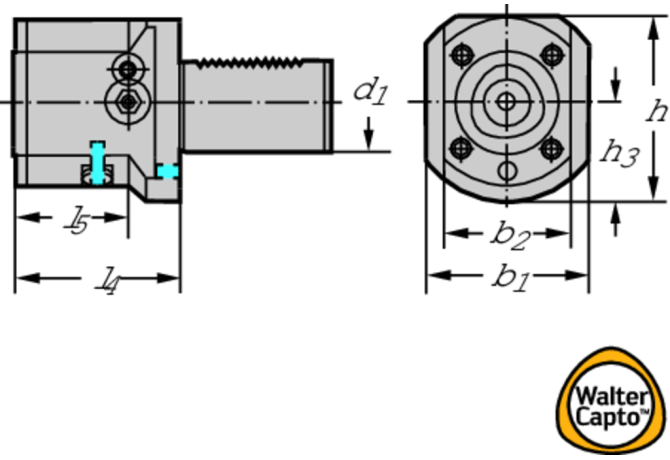

BD Body diameter
84 mm
BD Body diameter 2
84 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
CCS
CCUWS Unit base
9
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial
CZCWS Size code
0630
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYV06000195
FamilyProducts
VDI DIN 69880 clamping units TYP 2030 / 2040 / 2050 / 2060
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5012403
Interface codes
J6 / J61
ISO
ZYV01C0600$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LB Body length 1
50 mm
LF Functional length
95 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0630
LOC-01 ISO
CCS01C0630****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS06300195
LOC-02 CCFWS Form
01
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0630
LOC-02 ISO
CCS02C0630****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS06300295
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03 ISO
ZYV01C0600$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV06000195
LPR Protruding length
95 mm
LS Shank length
94 mm
Name Identifying order number
C6-LC2060-00095
OAH Overall height
105 mm
OAL Overall length
189 mm
OAW Overall width
84 mm
STDNO Standard
ISO26623-2
WF Functional width
0 mm
WT Weight of item
6.84 kg
