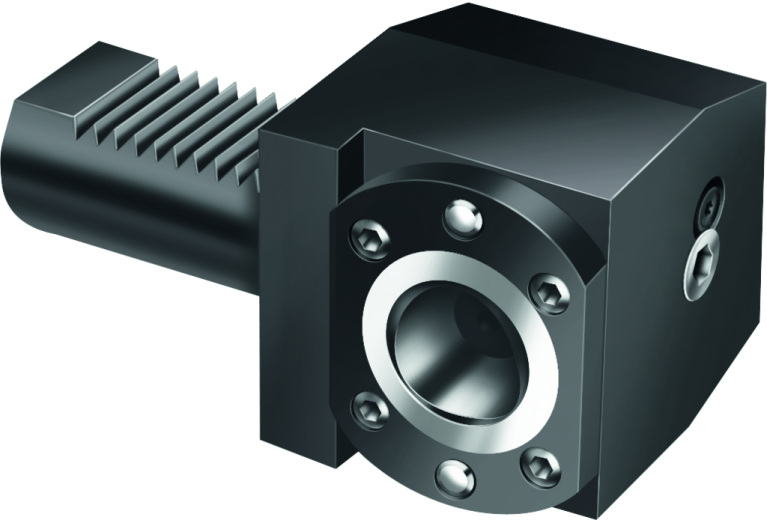

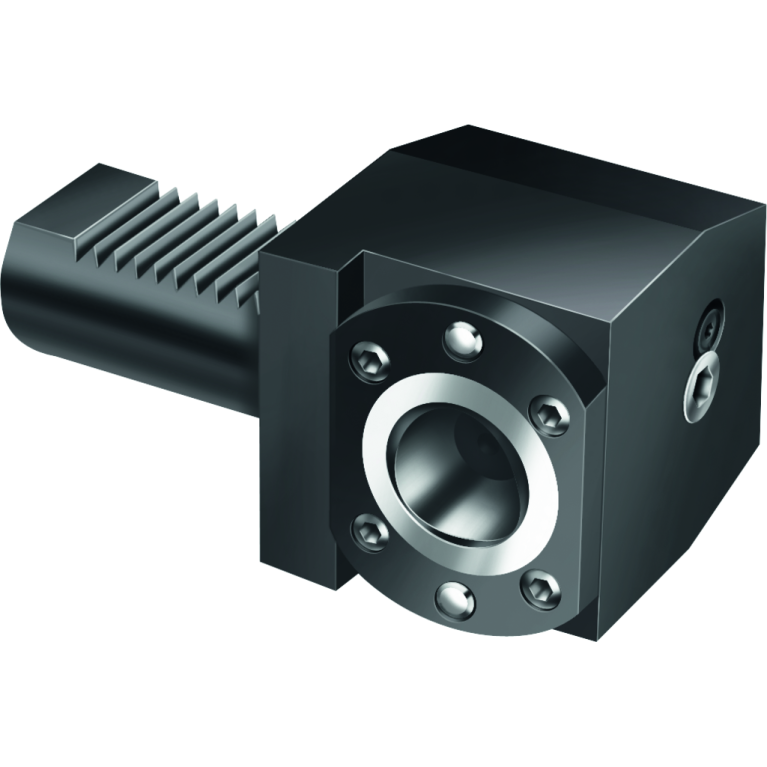

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C5-LC2060-43040M

C5-LC2060-43040M

Артикул: 5012389

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

CCS

CCUWS Unit base

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0500

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYV06000195

FamilyProducts

VDI DIN 69880 clamping units TYP 2030 / 2040 / 2050 / 2060

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

5012389

Interface codes

J6 / J61

ISO

ZYV01C0600$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LF Functional length

43 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0500

LOC-01 ISO

CCS01C0500****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS05000195

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-02 CCUWS Unit base

9 non-dimensional size with coolant

LOC-02 CZCWS Size code

0500

LOC-02 ISO

CCS02C0500****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS05000295

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0600

LOC-03 DCONMS Diameter

60 mm

LOC-03 ISO

ZYV01C0600$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV06000195

LPR Protruding length

75 mm

LS Shank length

94 mm

Name Identifying order number

C5-LC2060-43040M

OAH Overall height

94 mm

OAL Overall length

169 mm

OAW Overall width

99 mm

STDNO Standard

ISO26623-2

WF Functional width

40 mm

WT Weight of item

5.548 kg
