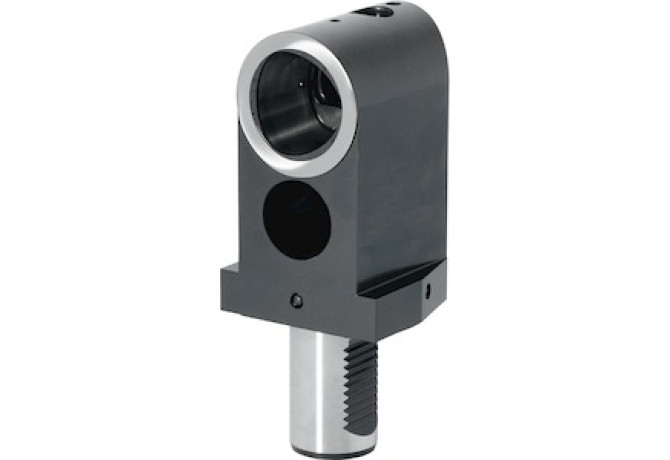

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 320565 40/50-120

320565 40/50-120

320565 40/50-120 320565 40/50-120 320565 40/50-120

320565 40/50-120

Hoffmann Group
Артикул: 320565 40/50-120
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
CCS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0500
DCONWS Diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DHD Drop head design
0 - Normal
DIN
ZYV04000115
FamilyProducts
GARANT VDI/PSC adapter, radial right-hand
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0500
LOC-01 DCONWS Diameter
50 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS05000195
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV04000115

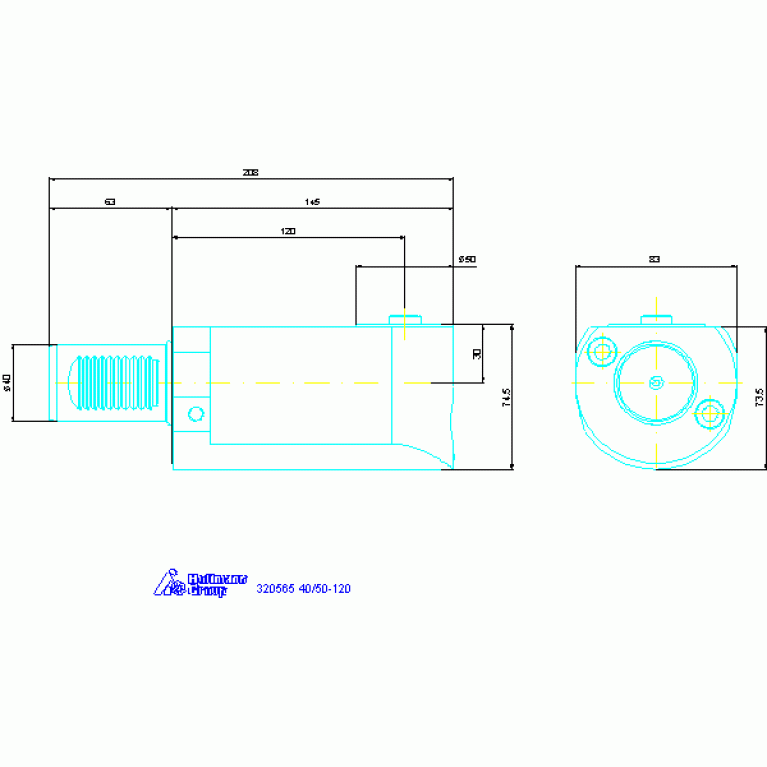

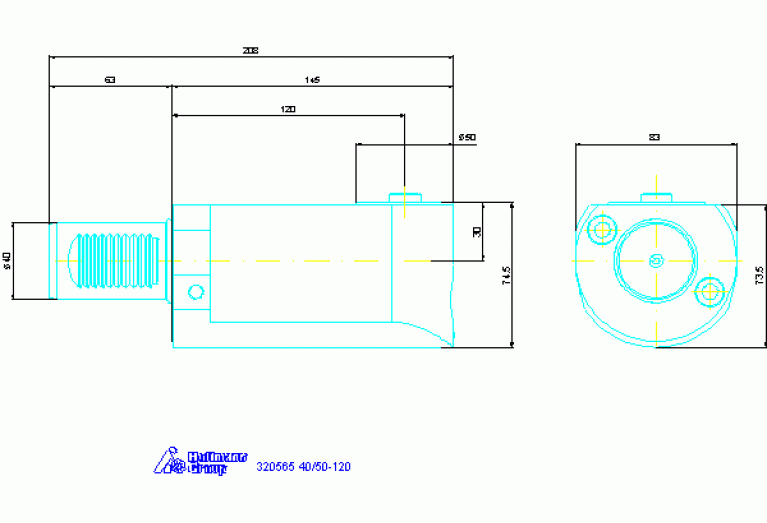

LPR Protruding length
145 mm
Name Identifying order number
320565 40/50-120
OAH Overall height
74.5 mm
OAL Overall length
208 mm
OAW Overall width
83 mm
WT Weight of item
4.63 kg
