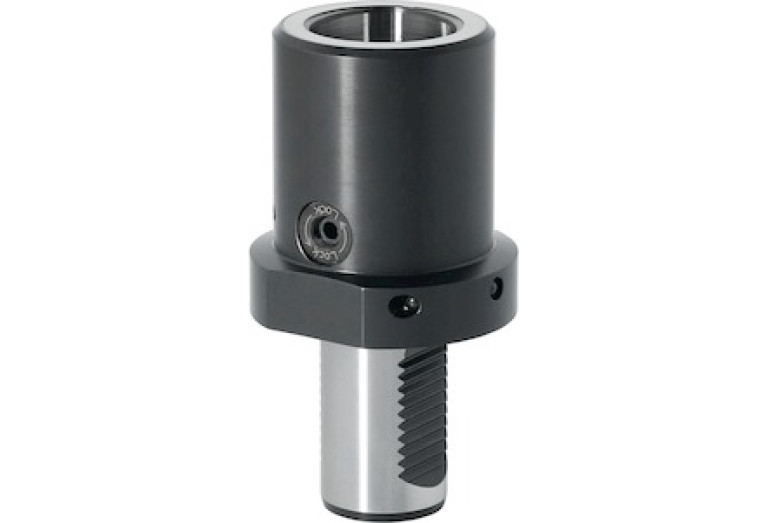

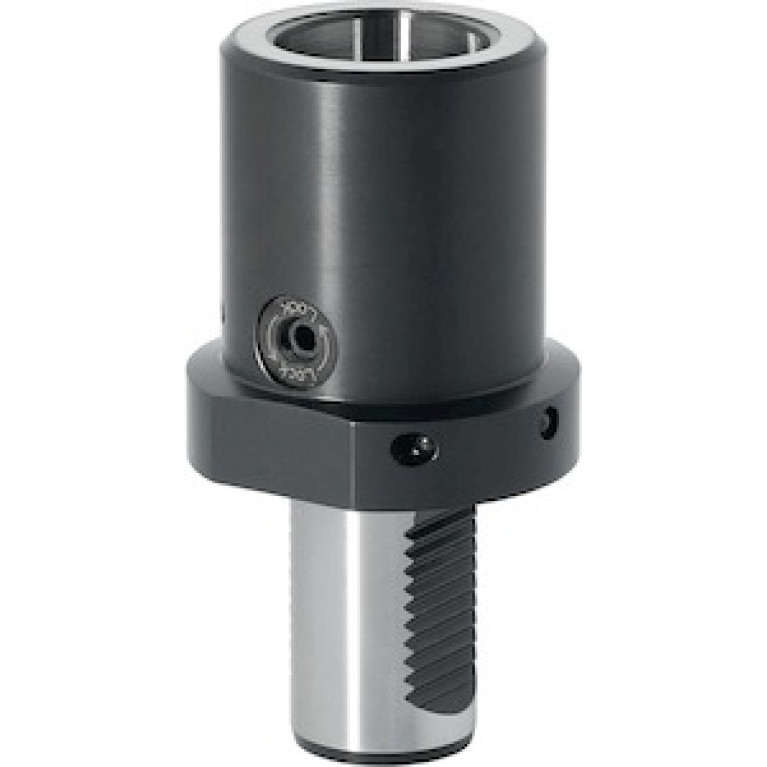

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 320560 40/63-90

320560 40/63-90

320560 40/63-90 320560 40/63-90 320560 40/63-90

320560 40/63-90

Hoffmann Group
Артикул: 320560 40/63-90
В наличии
В корзину
Описание
Характеристики

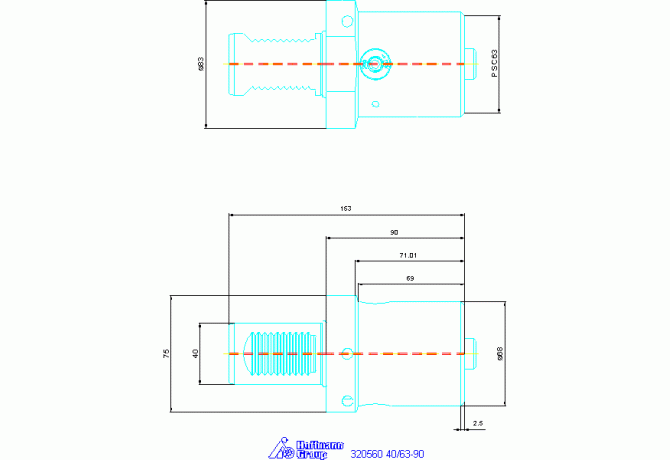

BD Body diameter
68 mm
BD Body diameter 2
83 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
CCS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0630
DCONWS Diameter
48.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DHD Drop head design
0 - Normal
DIN
ZYV04000115
FamilyProducts
GARANT VDI/PSC adapter, axial
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
LB Body length 1
69 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0630
LOC-01 DCONWS Diameter
48.5 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS06300195
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV04000115
LPR Protruding length
90 mm
LS Shank length
63 mm
Name Identifying order number
320560 40/63-90
OAL Overall length
153 mm
WT Weight of item
2.9 kg
