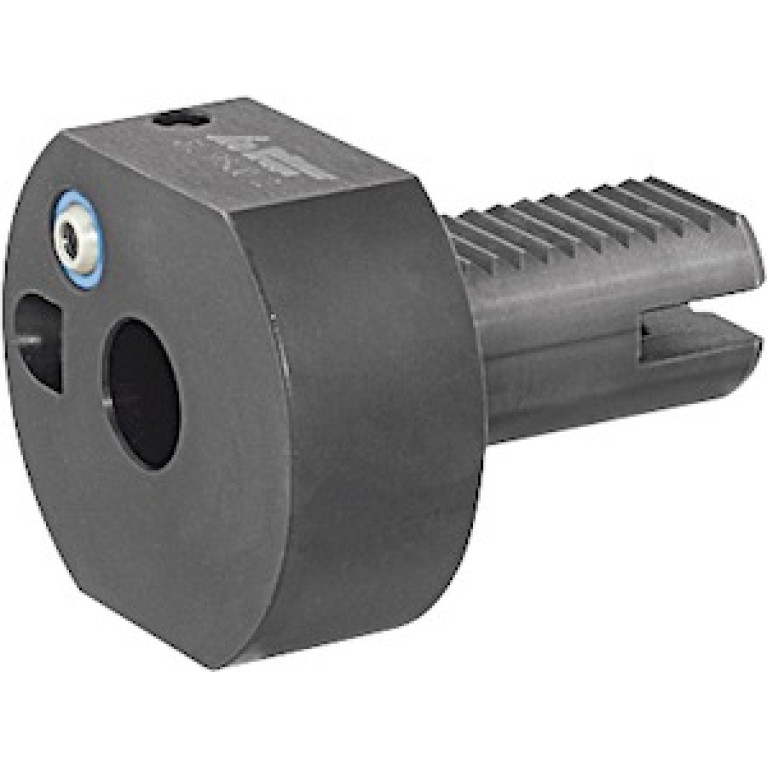

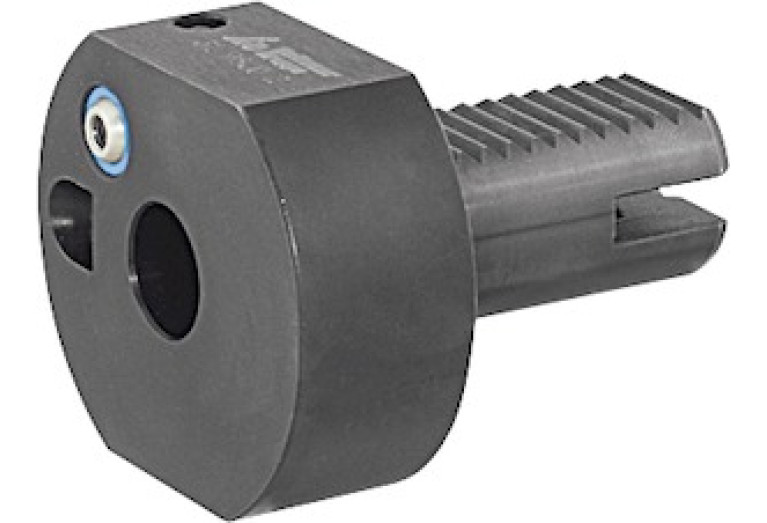

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319740 1

319740 1

319740 1 319740 1 319740 1

319740 1

Hoffmann Group
Артикул: 319740 1
В наличии
В корзину
Описание
Характеристики

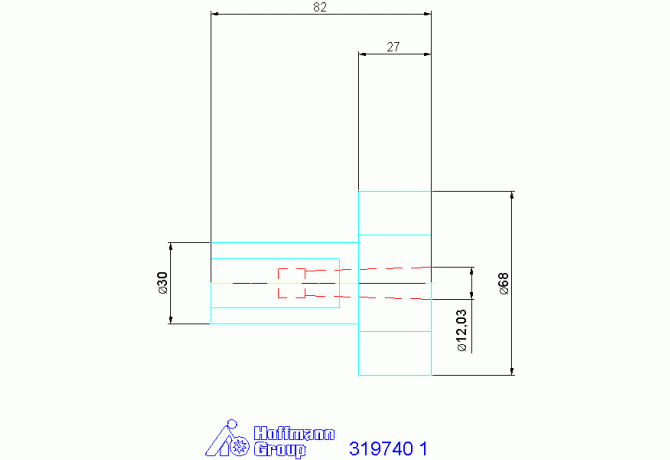

BD Body diameter
68 mm
CCFWS Connection code form
21
CCSWS Connection code style
5
CCTWS Connection code type
MKG
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0010
DCONWS Diameter
12.028 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYV03000115
FamilyProducts
Toolholder with taper arbor, Form F
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
LB Body length 1
27 mm
LF Functional length
27 mm
LOC-01 CCFWS Connection code form
21
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
MKG Morse taper
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0010
LOC-01 DCONWS Diameter
12.028 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
MKG00102085
LOC-02 DCONWS Diameter
12.028 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
HOG-MKB1
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0300
LOC-03 DCONMS Diameter
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV03000115
LPR Protruding length
27 mm
LS Shank length
55 mm
Name Identifying order number
319740 1
OAL Overall length
82 mm
WT Weight of item
0.9 kg
