Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319710 1-13

319710 1-13

Артикул: 319710 1-13

В наличии

В корзину

Описание

Характеристики

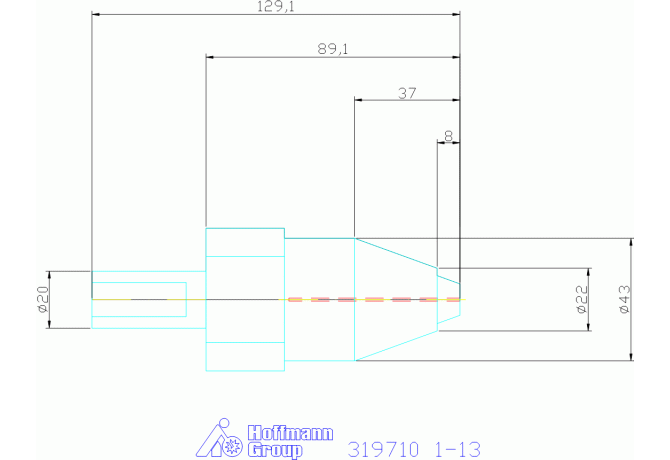

BD Body diameter

22 mm

BD Body diameter 2

43 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONWS Diameter

1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

49.5 mm

DIN

ZYV02000115

FamilyProducts

WEZEL Short drill chuck

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LB Body length 1

37 mm

LB Length 2

24.6 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 DCONWS Diameter

1 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01000105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV02000115

LPR Protruding length

81.1 mm

LSCX Clamping length maximum

29 mm

Name Identifying order number

319710 1-13

OAL Overall length

121.1 mm

TA Taper angle

20 Degree

WT Weight of item

0.53 kg
