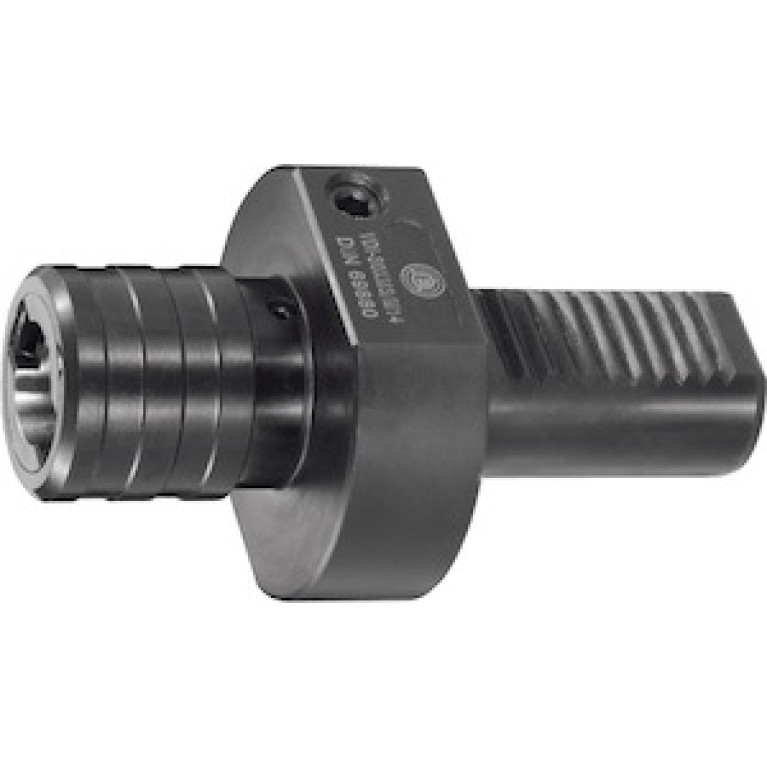

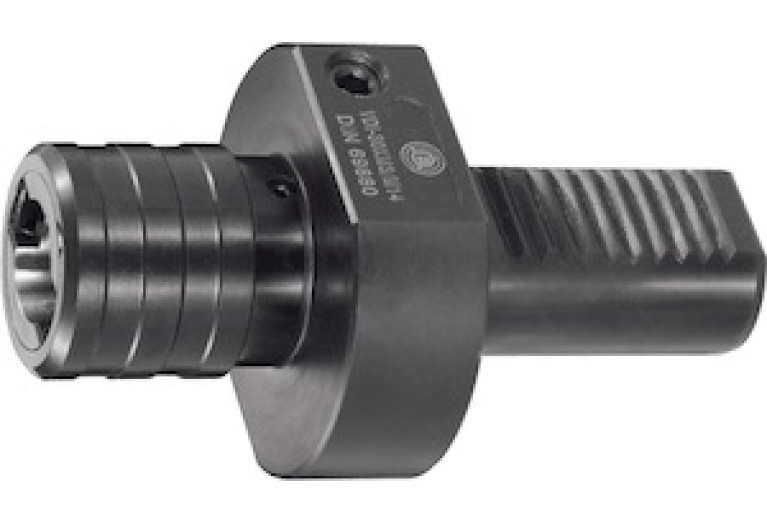

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319440 40

319440 40

Артикул: 319440 40

В наличии

В корзину

Описание

Характеристики

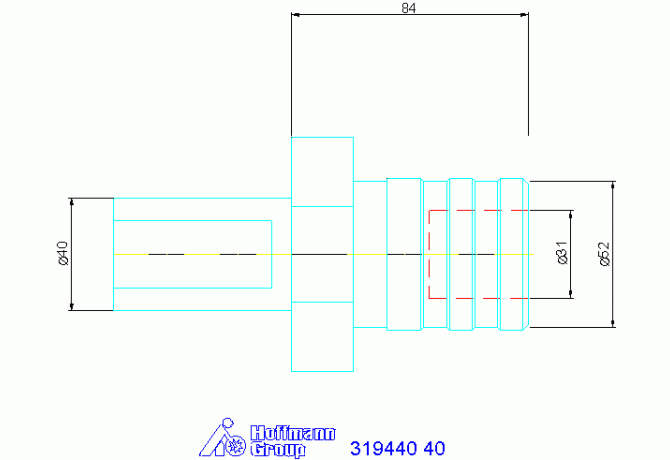

BD Body diameter

52 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SWB

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0310

DCONWS Diameter

31 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

83 mm

DIN

ZYV04000105

FamilyProducts

EROGLU Quick-change tapping chuck M5-M22

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LB Body length 1

62 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SWB Quick change adapter BILZ

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0310

LOC-01 DCONWS Diameter

31 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SWB03100105

LOC-02 DCONWS Diameter

31 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

HOG-GEW2

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV04000105

LPR Protruding length

84 mm

LS Shank length

63 mm

LSCX Clamping length maximum

35 mm

Name Identifying order number

319440 40

OAL Overall length

147 mm

WT Weight of item

2.1 kg
