Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319161 25

319161 25

Артикул: 319161 25

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

COMPC Company code

HOG - Hoffmann Group

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

1 - overhead

DIN

ZYV02500115

FamilyProducts

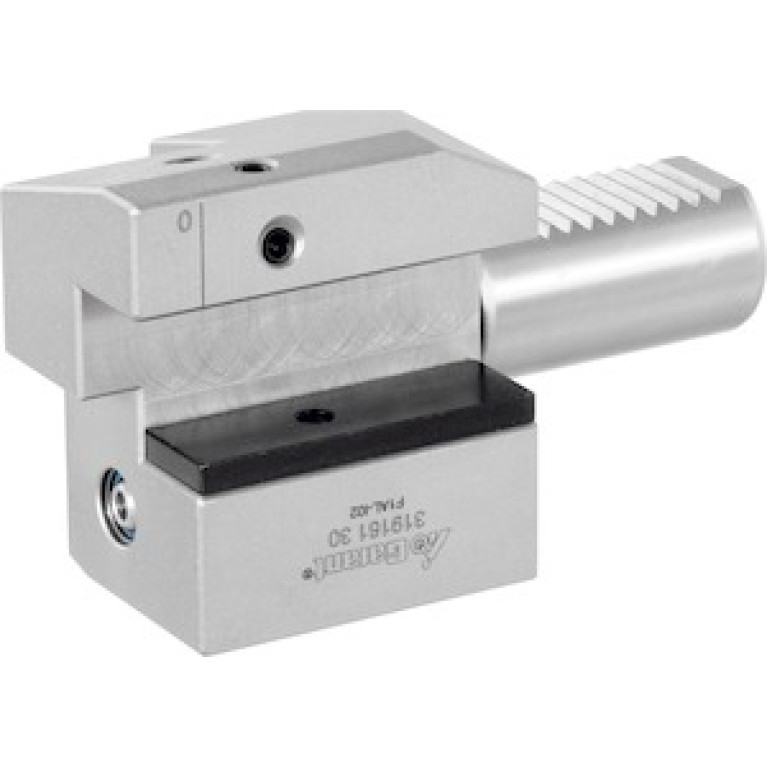

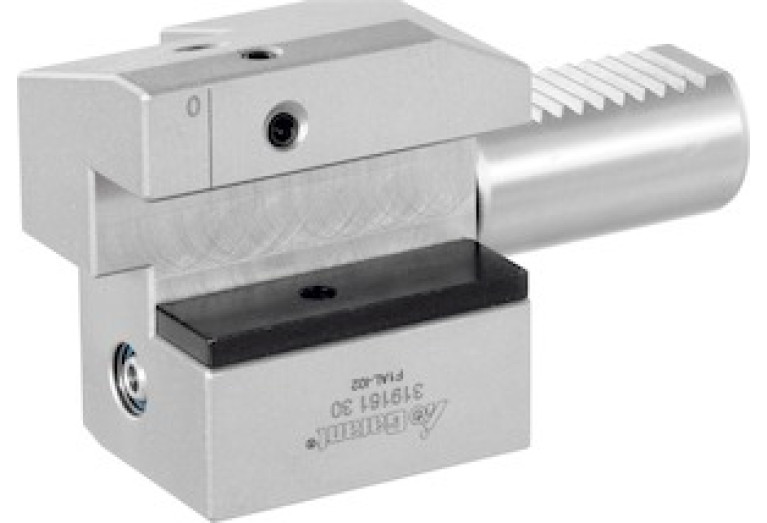

GARANT eco-toolholder Form C3, axial right-hand

HAND Cutting direction

R - Right

HF Functional height

16 mm

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV02500115

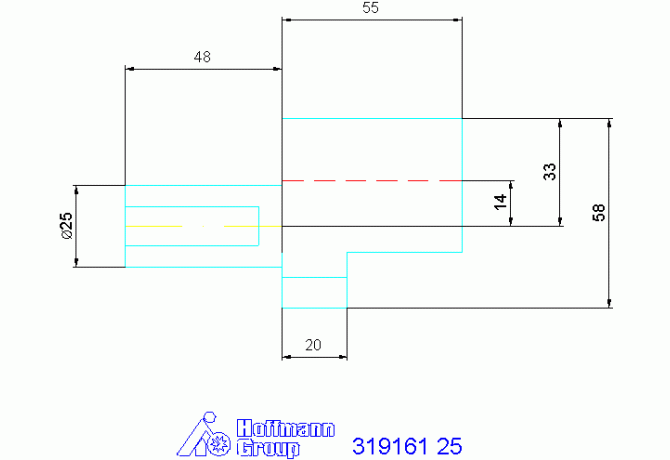

LPR Protruding length

55 mm

LS Shank length

48 mm

Name Identifying order number

319161 25

OAH Overall height

58 mm

OAL Overall length

103 mm

OAW Overall width

55 mm

WT Weight of item

1.05 kg
