Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319160 16

319160 16

Артикул: 319160 16

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

2 - With Coolant exit, radial

CZCWS Connection size code

1212

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

1 - overhead

DIN

ZYV01600105

FamilyProducts

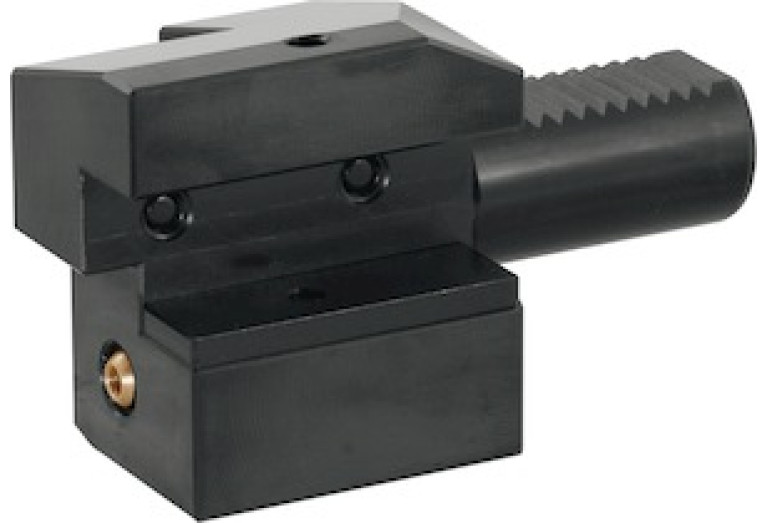

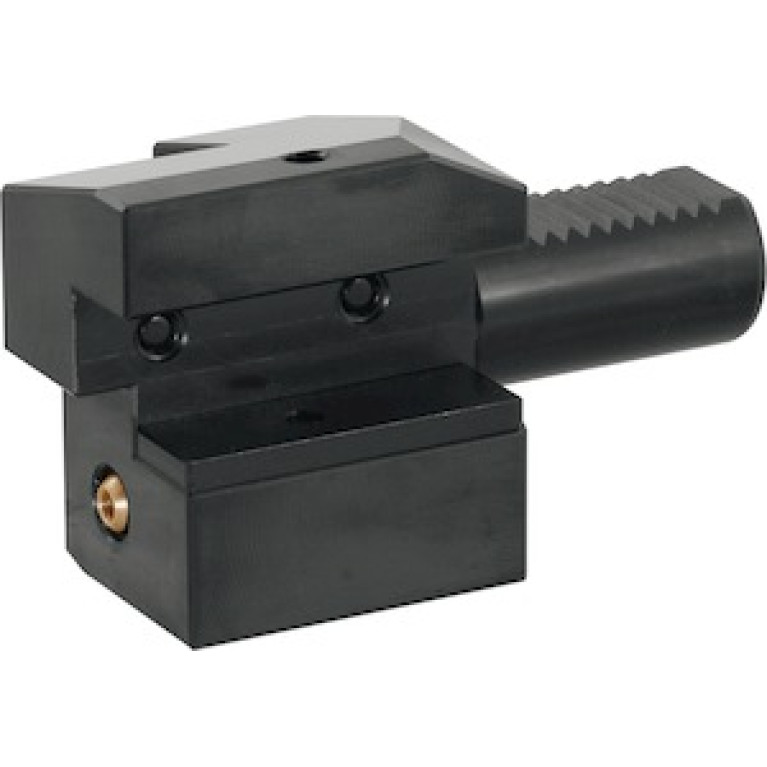

HOLEX Toolholder Form C3, axial right-hand

HAND Cutting direction

R - Right

HF Functional height

12 mm

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

1212

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT12120105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV01600105

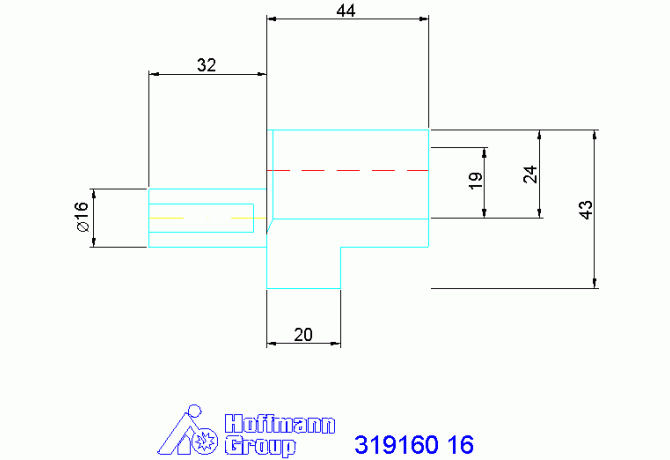

LPR Protruding length

44 mm

LS Shank length

32 mm

Name Identifying order number

319160 16

OAH Overall height

52 mm

OAL Overall length

76 mm

OAW Overall width

55 mm

WT Weight of item

0.41 kg
