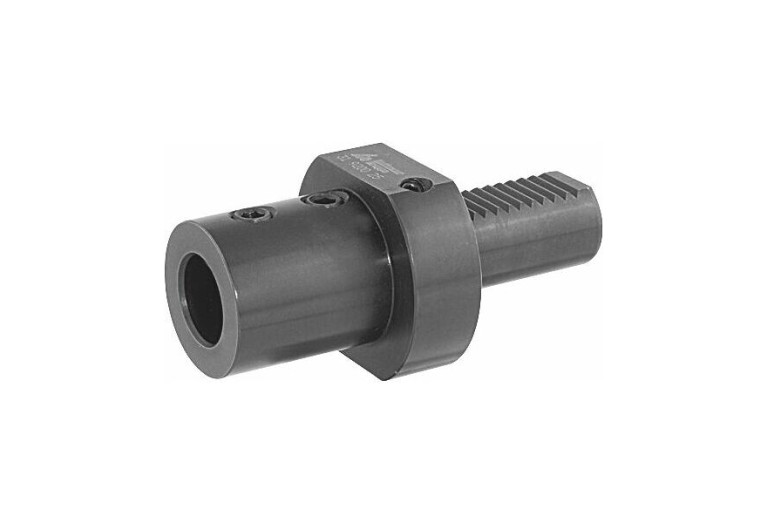

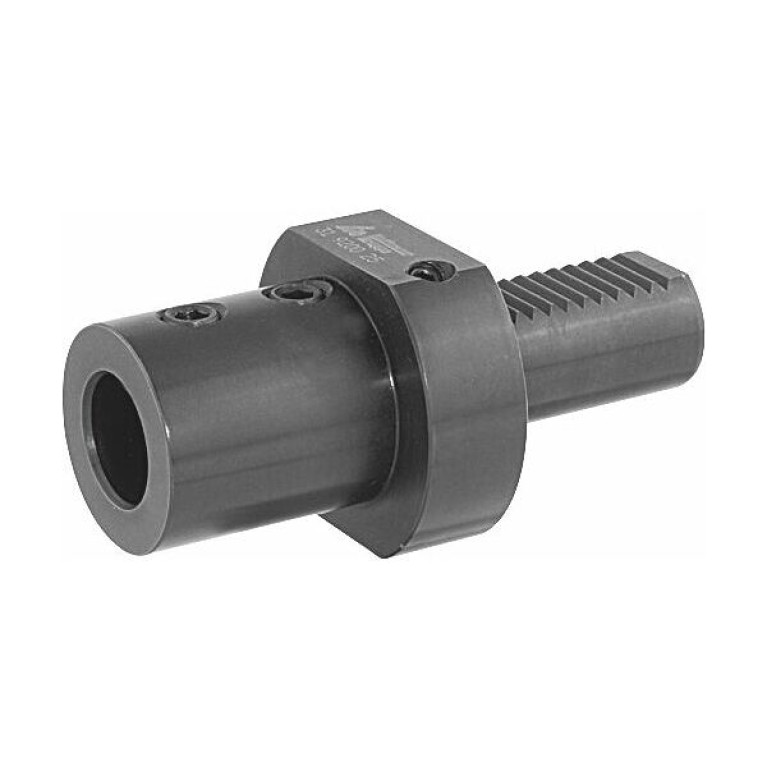

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319150 16

319150 16

Артикул: 319150 16

В наличии

В корзину

Описание

Характеристики

BD Body diameter

36 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0160

DCONWS Diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

50 mm

DIN

ZYV02000115

FamilyProducts

HOLEX Indexable drill holder Form E1

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LB Body length 1

49 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0160

LOC-01 DCONWS Diameter

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01601015

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV02000115

LPR Protruding length

67 mm

LS Shank length

40 mm

LSCX Clamping length maximum

54 mm

Name Identifying order number

319150 16

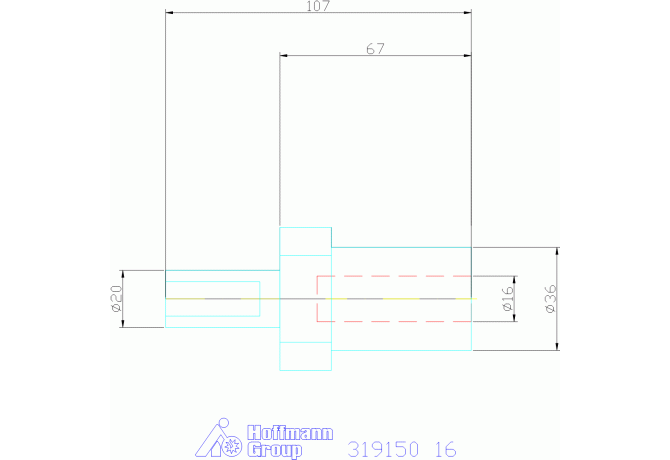

OAL Overall length

107 mm

WT Weight of item

0.66 kg
