Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319101 30

319101 30

Артикул: 319101 30

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

COMPC Company code

HOG - Hoffmann Group

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

0 - Normal

DIN

ZYV03000115

FamilyProducts

GARANT eco-toolholder Form C1, axial right-hand

HAND Cutting direction

R - Right

HF Functional height

20 mm

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0300

LOC-03 DCONMS Diameter

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV03000115

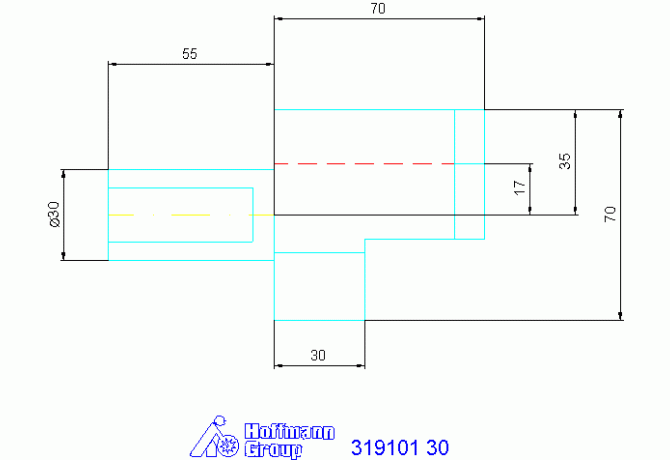

LPR Protruding length

70 mm

LS Shank length

55 mm

Name Identifying order number

319101 30

OAL Overall length

125 mm

WT Weight of item

1.77 kg
