Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319100 30

319100 30

Артикул: 319100 30

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

2020

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

0 - Normal

DIN

ZYV03000105

FamilyProducts

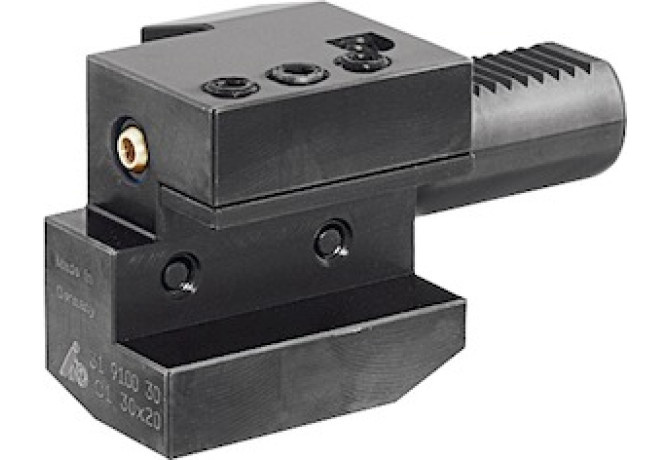

HOLEX Toolholder Form C1, axial right-hand

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

2020

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT20200105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0300

LOC-03 DCONMS Diameter

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV03000105

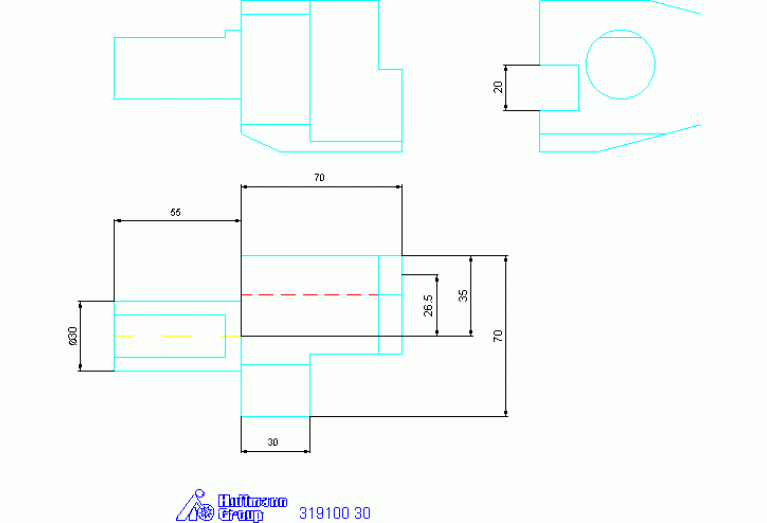

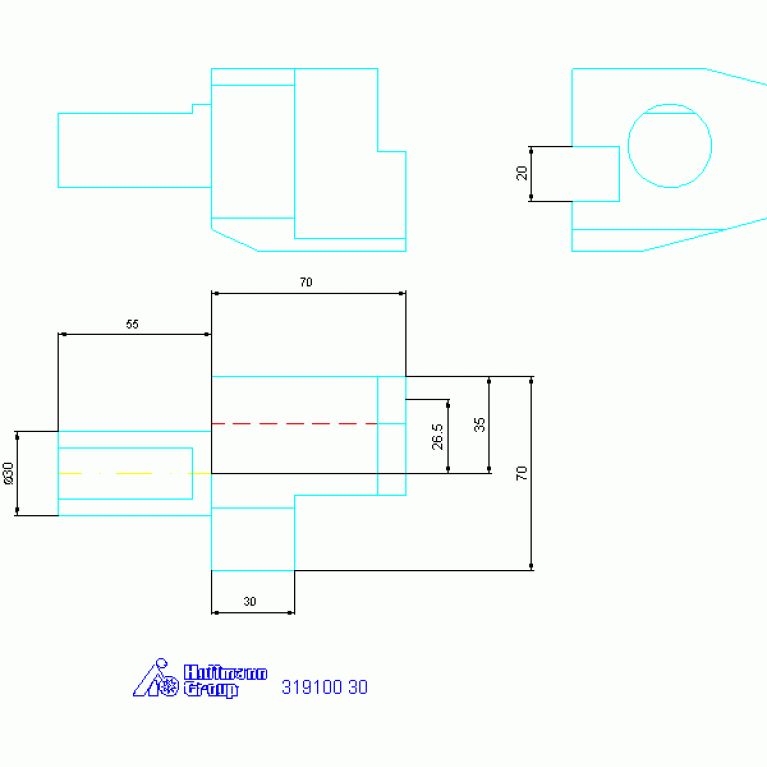

LPR Protruding length

70 mm

LS Shank length

55 mm

Name Identifying order number

319100 30

OAH Overall height

63.38 mm

OAL Overall length

125 mm

OAW Overall width

70 mm

WT Weight of item

1.74 kg
