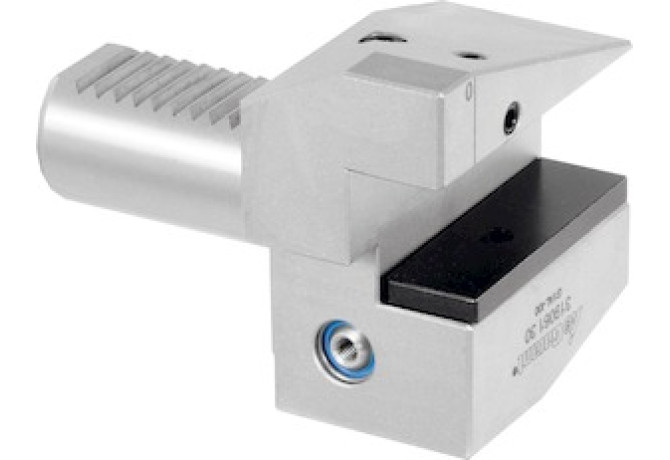

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319061 50

319061 50

Артикул: 319061 50

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

COMPC Company code

HOG - Hoffmann Group

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

1 - overhead

DIN

ZYV05000115

FamilyProducts

GARANT eco-toolholder Form B4, radial left-hand, short

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

0 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT25250105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV05000115

LPR Protruding length

55 mm

LS Shank length

78 mm

Name Identifying order number

319061 50

OAH Overall height

98 mm

OAL Overall length

133 mm

OAW Overall width

51 mm

RADH Radial height

50 mm

RADW Radial width

52 mm

WF Functional width

0 mm

WT Weight of item

4.12 kg
