Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319061 20

319061 20

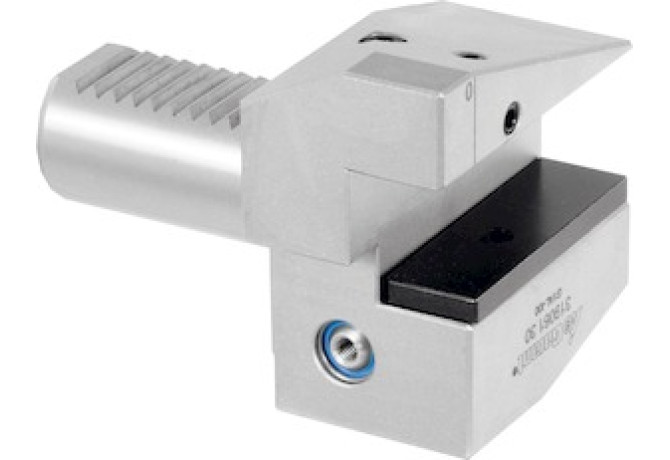

Артикул: 319061 20

В наличии

В корзину

Описание

Характеристики

CCTWS Connection code type

VKT

COMPC Company code

HOG - Hoffmann Group

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

1 - overhead

DIN

ZYV02000105

FamilyProducts

GARANT eco-toolholder Form B4, radial left-hand, short

HAND Cutting direction

L - Left

HF Functional height

16 mm

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

16 mm

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV02000105

LPR Protruding length

30 mm

LS Shank length

40 mm

Name Identifying order number

319061 20

OAL Overall length

70 mm

WT Weight of item

0.56 kg
