Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 319051 25

319051 25

Артикул: 319051 25

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

2 - With Coolant exit, radial

CZCWS Connection size code

1616

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

1 - overhead

DIN

ZYV02500115

FamilyProducts

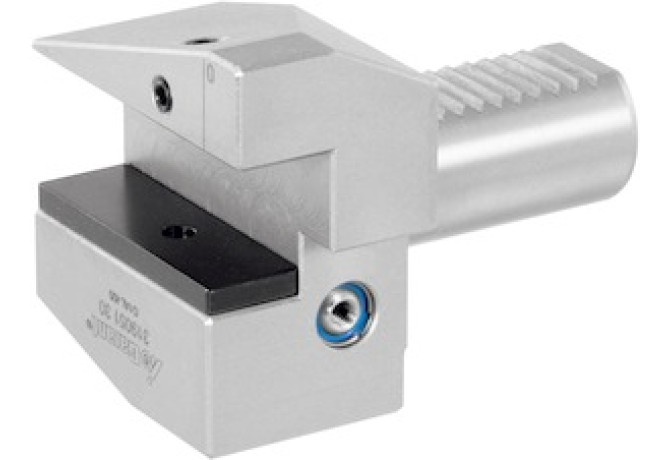

GARANT eco-toolholder Form B3, radial right-hand, short

HAND Cutting direction

R - Right

HF Functional height

16 mm

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

16 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

1616

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT16160115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV02500115

LPR Protruding length

30 mm

LS Shank length

48 mm

Name Identifying order number

319051 25

OAL Overall length

78 mm

WT Weight of item

0.66 kg
