Главная Каталог продукции СЗЦПК инструмент 15 401-02 - Converter, stationary 319010 50

319010 50

319010 50 319010 50 319010 50

319010 50

Hoffmann Group
Артикул: 319010 50
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
VKT
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
3232
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DHD Drop head design
0 - Normal
DIN
ZYV05000105
FamilyProducts

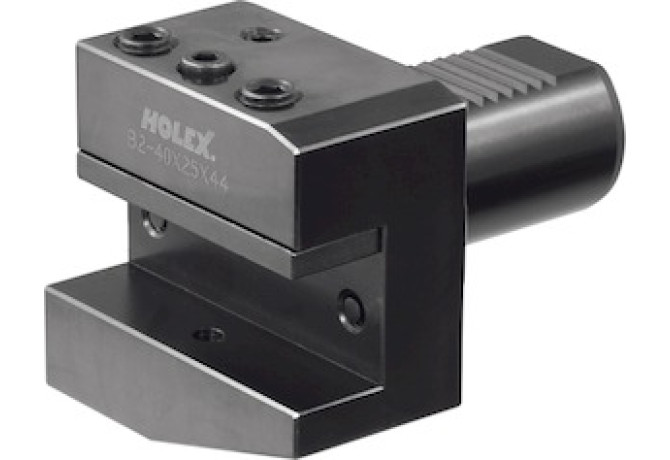

HOLEX Toolholder Form B2 radial left-hand, short
HAND Cutting direction
L - Left
HF Functional height
32 mm
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
LF Functional length
25 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
VKT Square mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
3232
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
VKT32320105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV05000105
LPR Protruding length
55 mm
LS Shank length
78 mm
Name Identifying order number
319010 50
OAL Overall length
133 mm
WT Weight of item
4.04 kg
