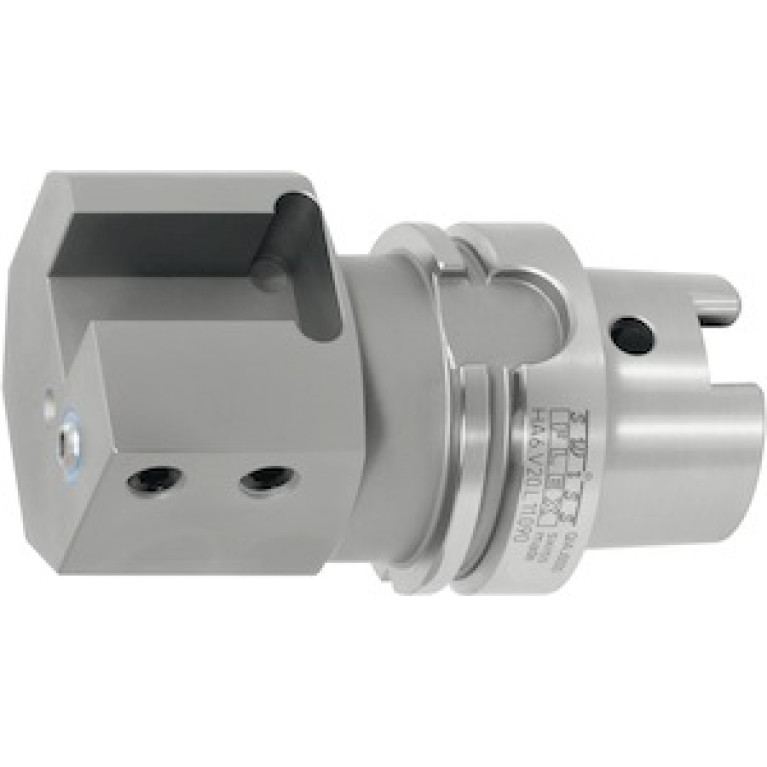

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 318606 20

318606 20

Артикул: 318606 20

В наличии

В корзину

Описание

Характеристики

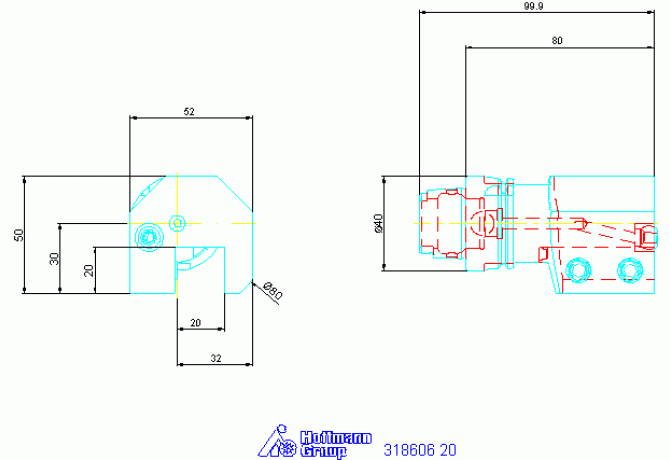

BD Body diameter

50 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

0 - Normal

FamilyProducts

Toolholder axial, single, left-hand

HAND Cutting direction

L - Left

HF Functional height

20 mm

Interface codes

ISYC Subclass

401-02 - Converter, stationary

LB Body length 1

60.05 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

80 mm

Name Identifying order number

318606 20

OAH Overall height

52 mm

OAL Overall length

99.9 mm

OAW Overall width

50 mm

WF Functional width

10 mm

WT Weight of item

0.944 kg
