Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary 001.KM50.20

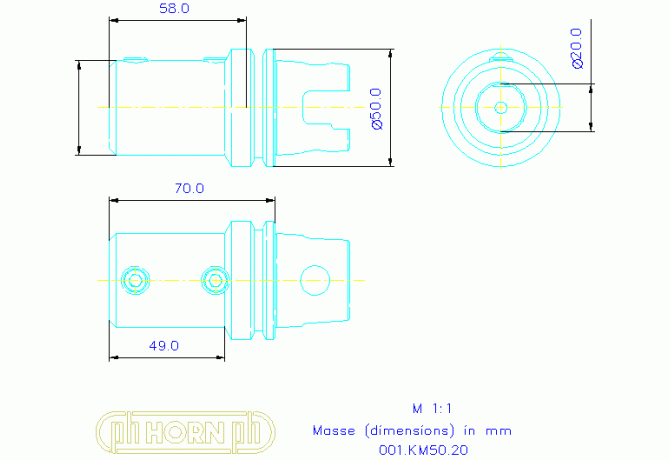

001.KM50.20

Артикул: 001KM5020

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

HORN - Paul Horn

CZCWS Connection size code

0200

DCONWS Diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/15/2014

DIN

KMT05000195

FamilyProducts

Adaptor

HAND Cutting direction

N - Neutral

ID Technical product number

001KM5020

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0200

LOC-01 DCONWS Diameter

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02002215

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KMT05000195

Name Identifying order number

001.KM50.20

Rotation Rotation indicator

0 - stationary tool
