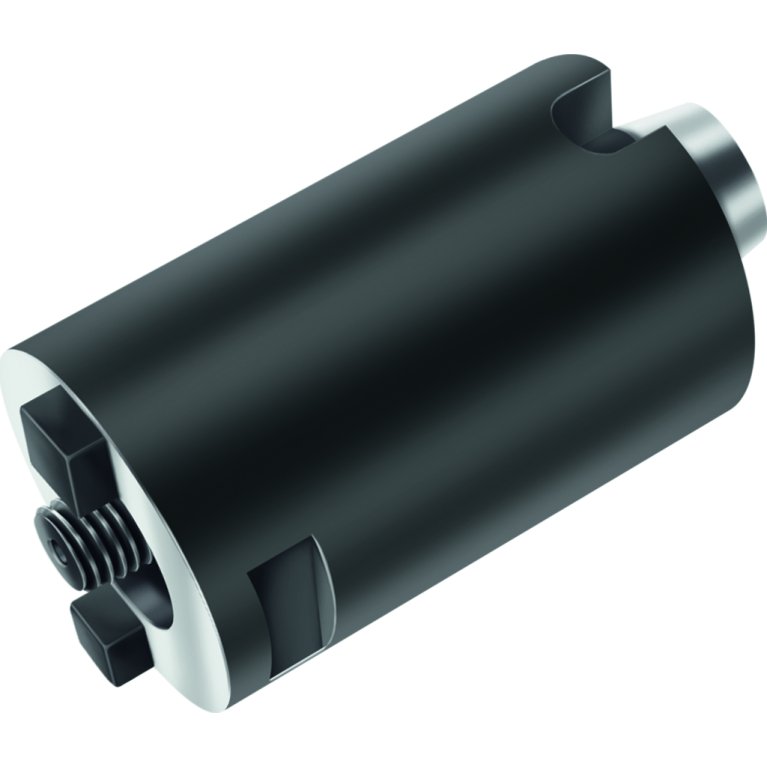

Главная Каталог продукции Toolunited 15 401-03 - Extender A101M.0.50.080.50

A101M.0.50.080.50

Артикул: 5007422

В наличии

В корзину

Описание

Характеристики

BD Body diameter

50 mm

CCFWS Form

CCSWS Style

CCTWS Type

NCT

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0500

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

50 mm

DIN

NCT05000195

FamilyProducts

Extension adaptor A101M

ID Technical product number

5007422

Interface codes

J6 / J61

ISO

NCT01C0500$$$$

ISYC Subclass

401-03 - Extender

KAP Kappa

0 Degree

LB Body length 1

80 mm

LF Functional length

80 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

NCT Novex-NC-Tools WALTER

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0500

LOC-01 ISO

NCT01C0500****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

NCT01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT05000195

LPR Protruding length

80 mm

LS Shank length

12 mm

Name Identifying order number

A101M.0.50.080.50

OAL Overall length

92 mm

RPMX Rotational speed maximum

30000 1/min

STDLET Standard letter to the standard number

STDNO Standard

DIN 4000-89 KENNZAHL

WT Weight of item

1.114 kg
