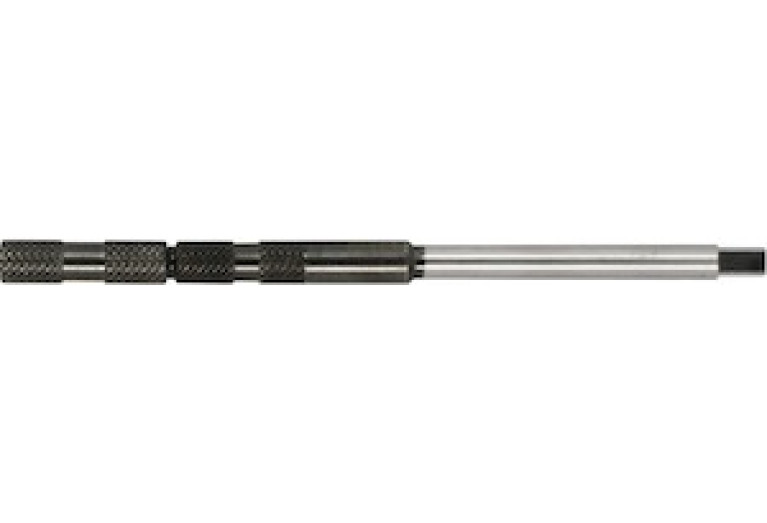

Главная Каталог продукции Toolunited 15 401-03 - Extender 338450 7L

338450 7L

338450 7L 338450 7L 338450 7L

338450 7L

Hoffmann Group
Артикул: 338450 7L
В наличии
В корзину
Описание
Характеристики
BD Body diameter
15 mm
CCFWS Connection code form
21
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0090
DCONWS Diameter
9 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00902105
FamilyProducts
HOLEX Tap extension with internal coolant supply
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-03 - Extender
LB Body length 1
144 mm
LOC-01 CCFWS Connection code form
21
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0090
LOC-01 DCONWS Diameter
9 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00902105
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LPR Protruding length
150 mm
LSCX Clamping length maximum
31 mm
Name Identifying order number
338450 7L
OAL Overall length
230 mm
WT Weight of item
0.2 kg
