Главная Каталог продукции Toolunited 15 401-00 - Adaptive item converter, extender, reducer unspecified AA766-T36-G16-040

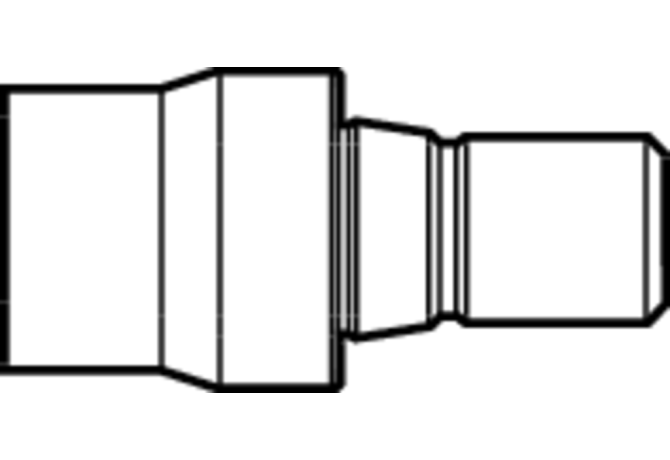

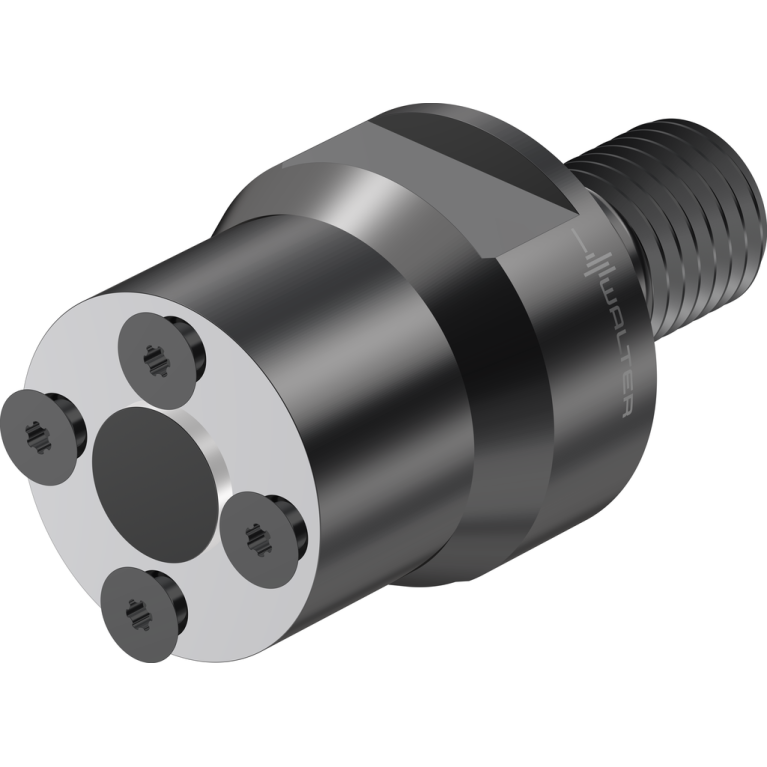

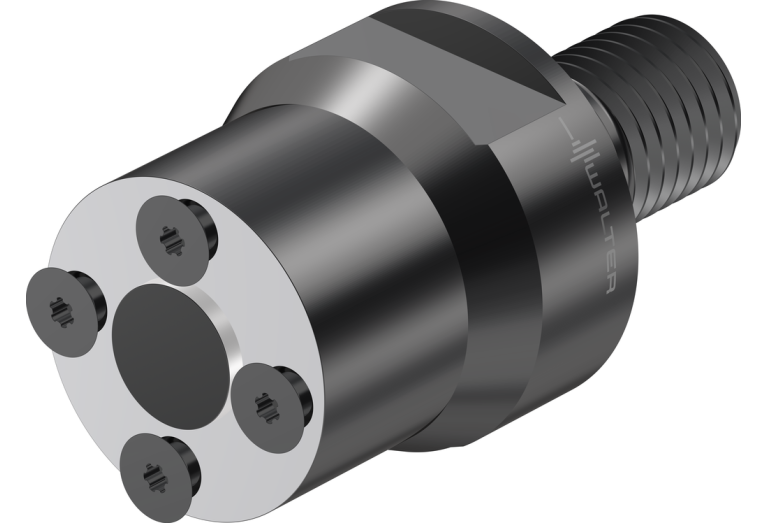

AA766-T36-G16-040

Артикул: 6682460

В наличии

В корзину

Описание

Характеристики

BD Body diameter

32 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

36 mm

DIN

SAW03600185

FamilyProducts

Intermediate element AA766

ID Technical product number

6682460

Interface codes

J6 / J61

ISO

SAW01C0360$$$$

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

KAP Kappa

0 Degree

LB Body length 1

17.3 mm

LF Functional length

37.3 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0360

LOC-03 DCONMS Diameter

36 mm

LOC-03 ISO

SAW01C0360$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW03600185

LPR Protruding length

20 mm

Name Identifying order number

AA766-T36-G16-040

OAL Overall length

39.5 mm

RPMX Rotational speed maximum

5100 1/min

THSZMS Connection thread nominal size machine side

M20

WT Weight of item

0.346 kg
