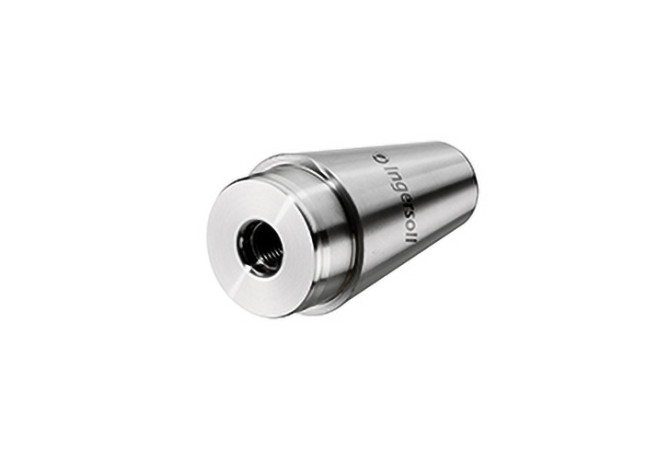

Главная Каталог продукции СЗЦПК инструмент 15 401-00 - Adaptive item converter, extender, reducer unspecified 69871A60CP60SA25

69871A60CP60SA25

Артикул: 4553481

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

SKG05001085

FamilyProducts

ISO 50/60 DIN69871A Centering Pin

HAND Cutting direction

N - Neutral

ID Technical product number

4553481

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

IL-K-1234

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

IL-ZDA06000100

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001085

LSCN Clamping length minimum

25 mm

LSCX Clamping length maximum

25 mm

Name Identifying order number

69871A60CP60SA25

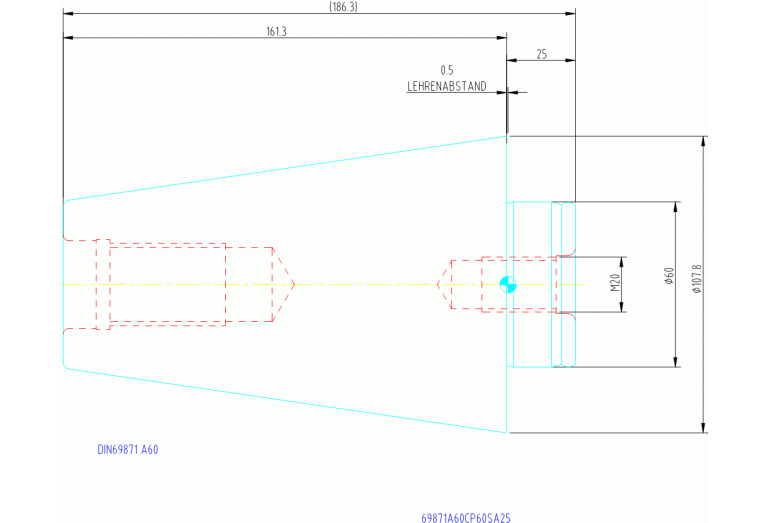

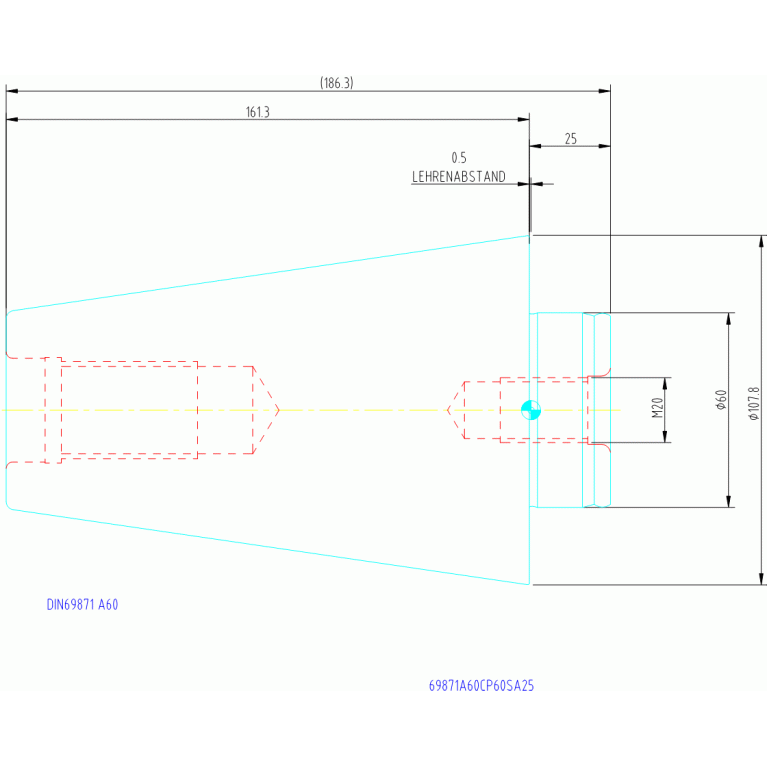

OAL Overall length

186.8 mm

WT Weight of item

7.5 kg
