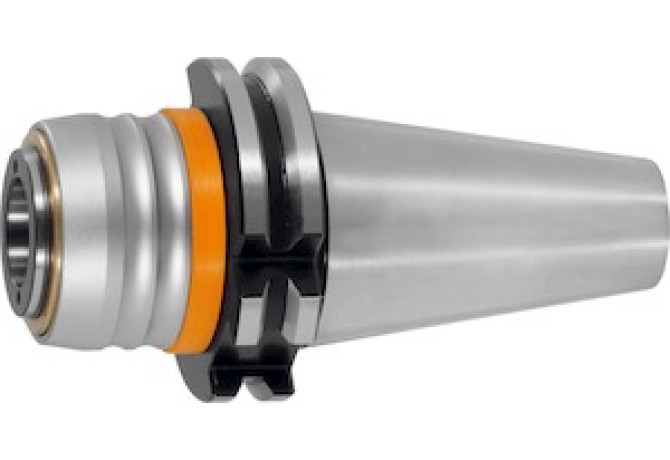

Главная Каталог продукции Toolunited 15 401-00 - Adaptive item converter, extender, reducer unspecified 338105 M6-20

338105 M6-20

Артикул: 338105 M6-20

В наличии

В корзину

Описание

Характеристики

BD Body diameter

53.8 mm

BD Body diameter 2

60 mm

CCSWS Connection code style

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONWS Diameter

6 mm

DCONXWS Connection diameter max

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

SKG05001795

FamilyProducts

GARANT MLA tapping head IC 50 bar

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

5 mm

LB Length 2

49.9 mm

LF Functional length

74 mm

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 DCONWS Diameter

6 mm

LOC-01 DCONXWS Connection diameter max

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

HOG-MLA3

LOC-02 DCONWS Diameter

6 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

HOG-MLA6-20

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

74 mm

LSCX Clamping length maximum

13.5 mm

Name Identifying order number

338105 M6-20

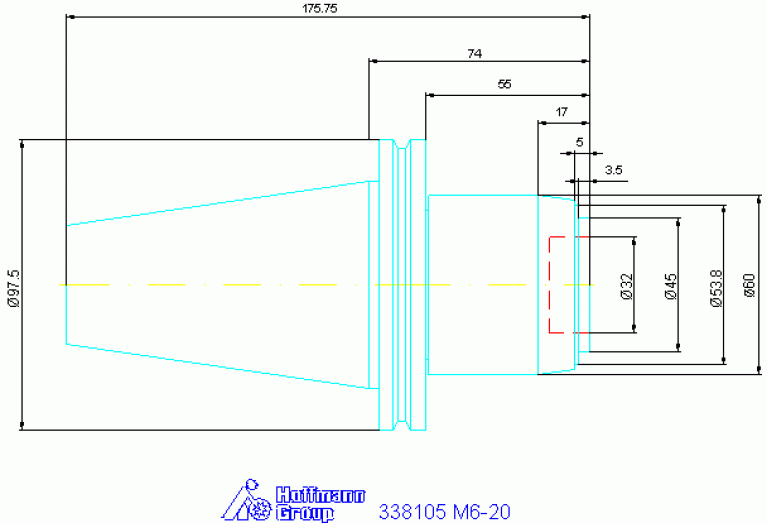

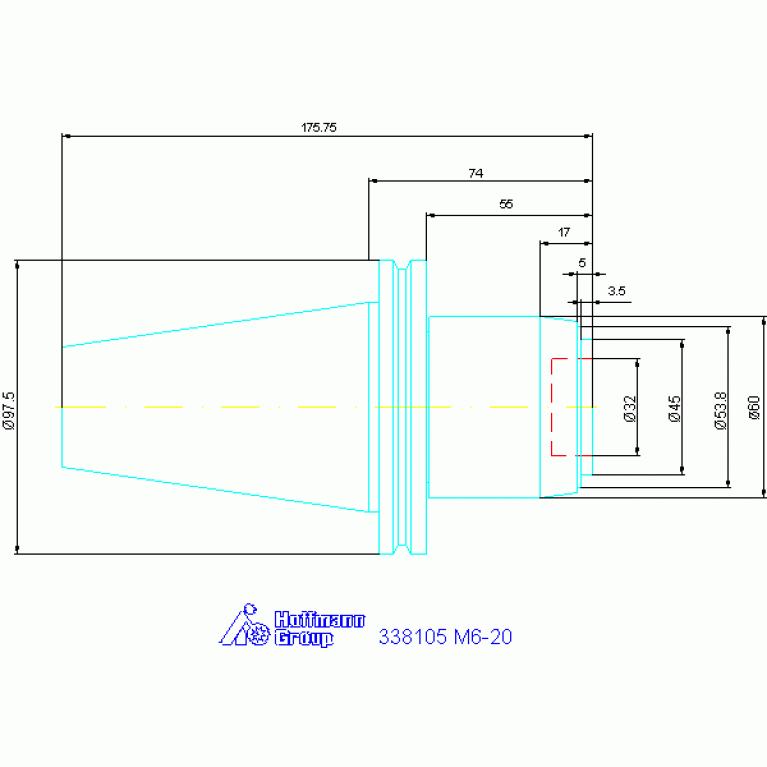

OAL Overall length

175.75 mm

WT Weight of item

3.5 kg
