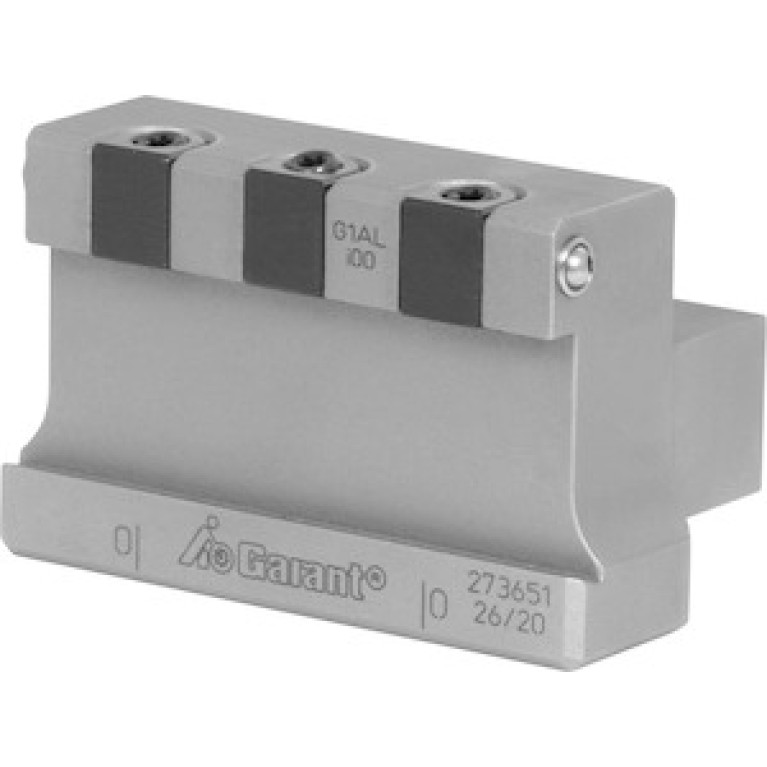

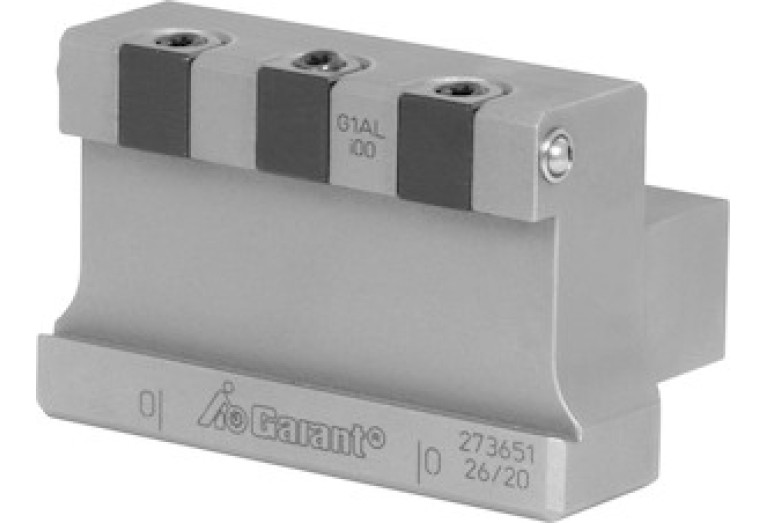

Главная Каталог продукции Toolunited 15 401-00 - Adaptive item converter, extender, reducer unspecified 273651 26/20

273651 26/20

Артикул: 273651 26/20

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

VKT20200115

FamilyProducts

eco parting off toolholder

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

2020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200115

Name Identifying order number

273651 26/20

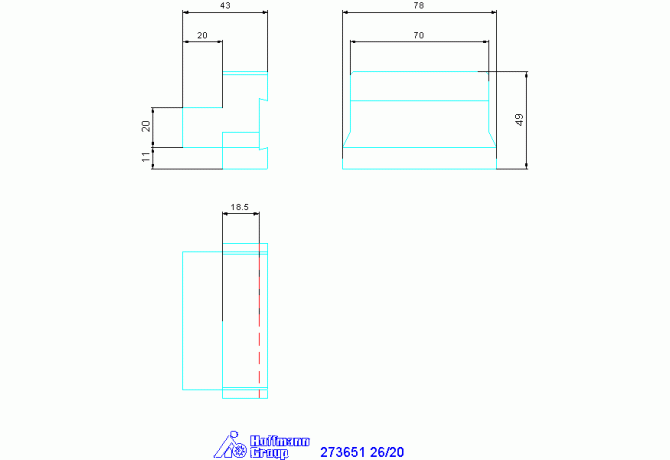

OAH Overall height

49 mm

OAL Overall length

43 mm

OAW Overall width

78 mm

WT Weight of item

0.76 kg
