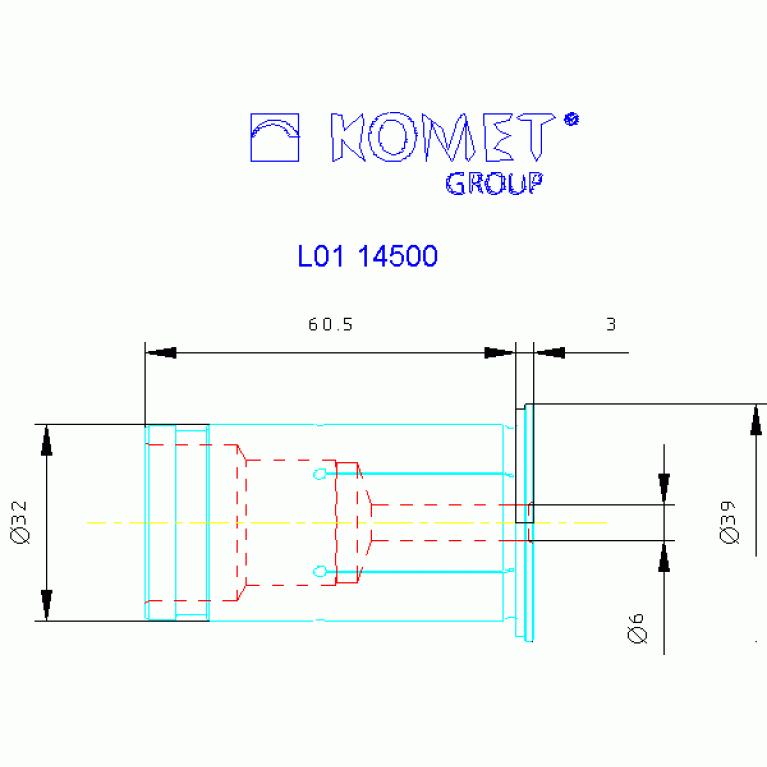

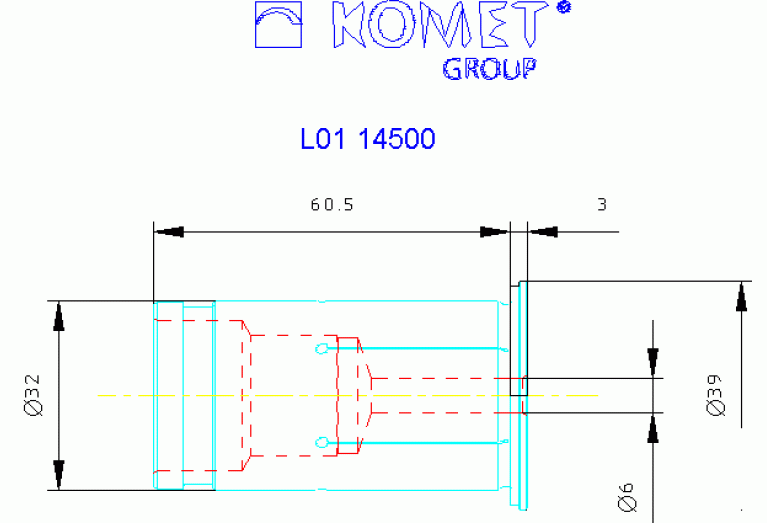

Главная Каталог продукции Toolunited 15 401-04 - Reducer, primary design L01 14500

L01 14500

Артикул: 1490876

В наличии

В корзину

Описание

Характеристики

BD Body diameter

39 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0060

DCONWS Diameter

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/26/2012

DIN

ZYL03200105

FamilyProducts

Zwischenbüchse Ø 6

HAND Cutting direction

N - Neutral

ID Technical product number

1490876

Interface codes

J6 /

ISYC Subclass

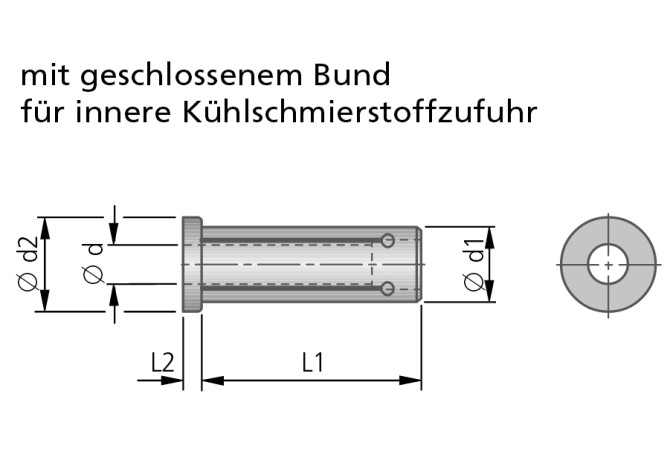

401-04 - Reducer, primary design

LB Body length 1

3 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CZCWS Connection size code

0060

LOC-01 DCONWS Diameter

6 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00600105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200105

LPR Protruding length

3 mm

LSCN Clamping length minimum

0 mm

Name Identifying order number

L01 14500

OAL Overall length

66.5 mm

Rotation Rotation indicator

1 - rotating tool

WT Weight of item

0.31 kg
