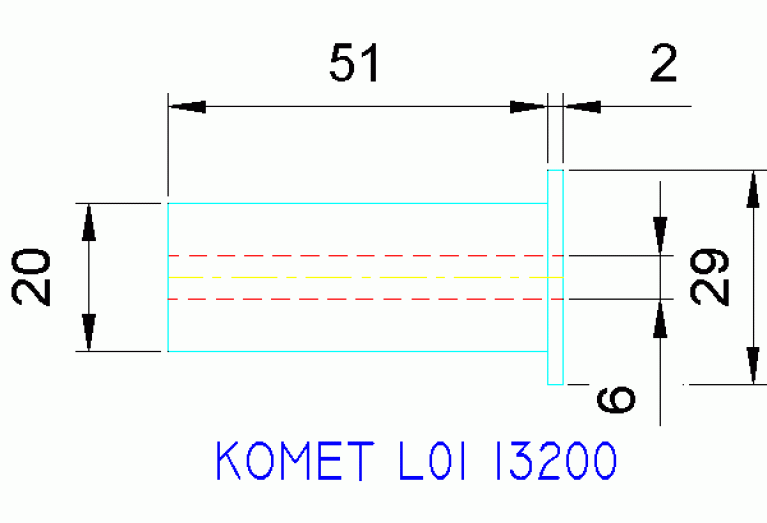

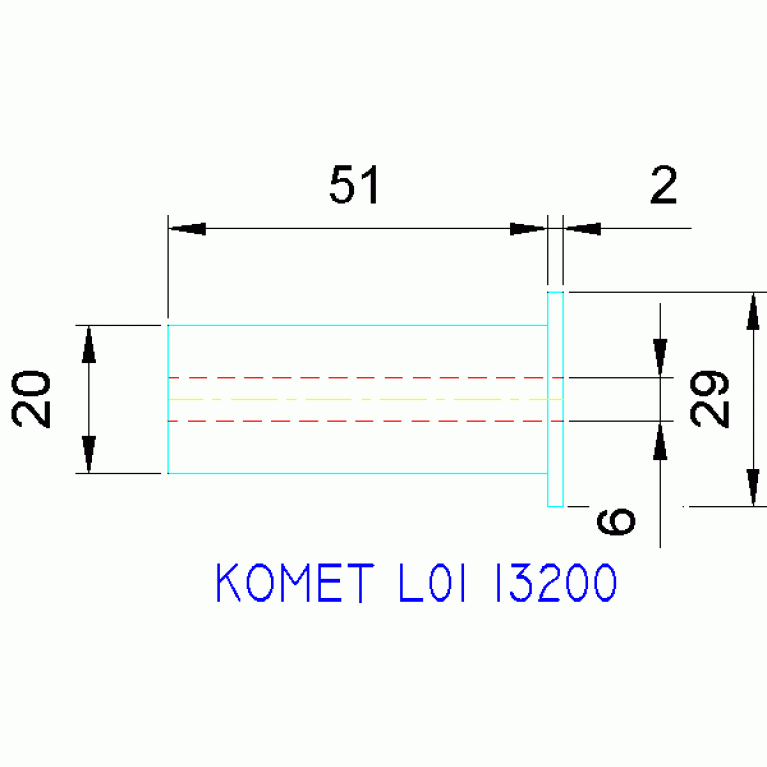

Главная Каталог продукции Toolunited 15 401-04 - Reducer, primary design L01 13200

L01 13200

Артикул: 1476437

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0060

DCONWS Diameter

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DIN

ZYL02000105

FamilyProducts

Zwischenbüchse Ø 6

HAND Cutting direction

N - Neutral

ID Technical product number

1476437

Interface codes

J6 /

ISYC Subclass

401-04 - Reducer, primary design

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CZCWS Connection size code

0060

LOC-01 DCONWS Diameter

6 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00600105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

2 mm

LSCN Clamping length minimum

0 mm

Name Identifying order number

L01 13200

OAL Overall length

53 mm

Rotation Rotation indicator

1 - rotating tool

WT Weight of item

0.09 kg
