Главная Каталог продукции Toolunited 15 401-04 - Reducer, primary design JFS2520-20

JFS2520-20

Артикул: 811356

В наличии

В корзину

Описание

Характеристики

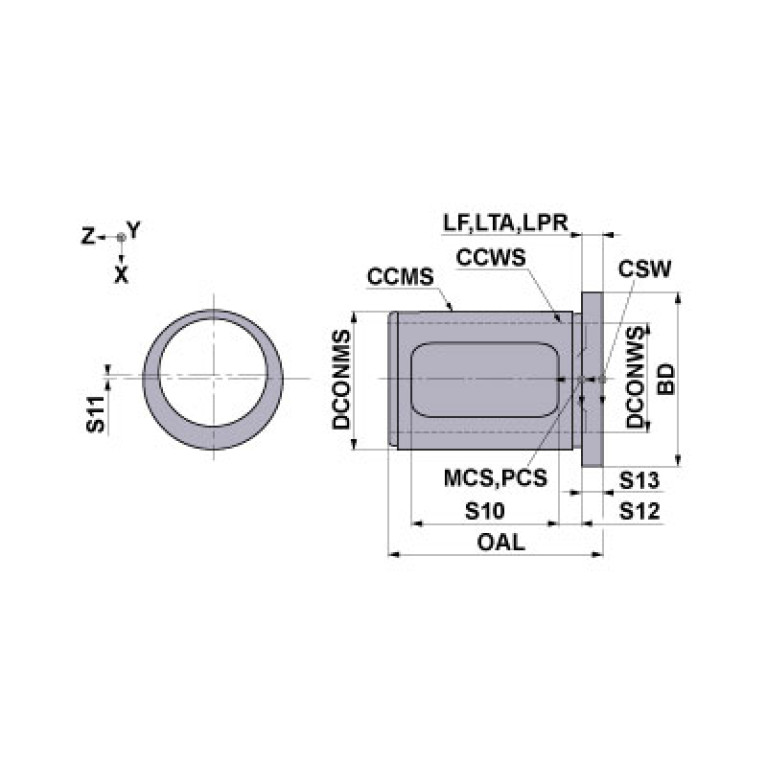

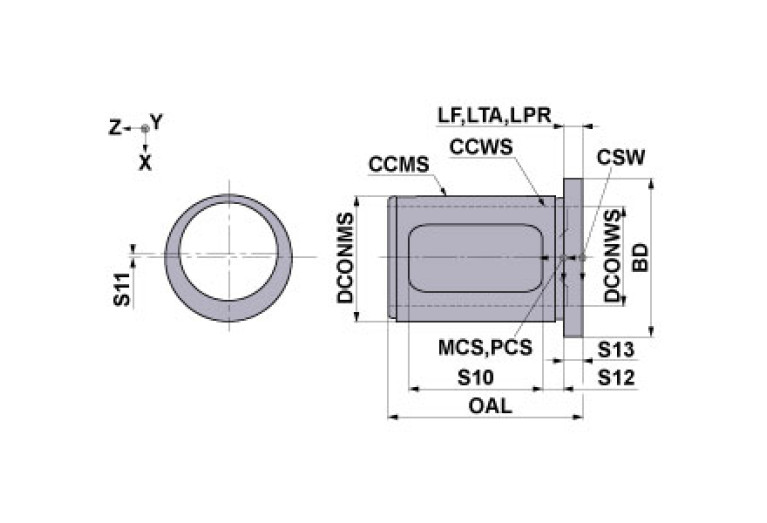

BD Body diameter

33 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0200

DCONWS Diameter

20 mm

Delivery state valid from

4/1/2022

DIN

ZYL02502205

FamilyProducts

spare parts

HAND Cutting direction

N - Neutral

ID Technical product number

811356

Interface codes

J6 /

ISYC Subclass

401-04 - Reducer, primary design

LF Functional length

43 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0200

LOC-01 DCONWS Diameter

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02002205

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502205

Name Identifying order number

JFS2520-20

OAL Overall length

43 mm
