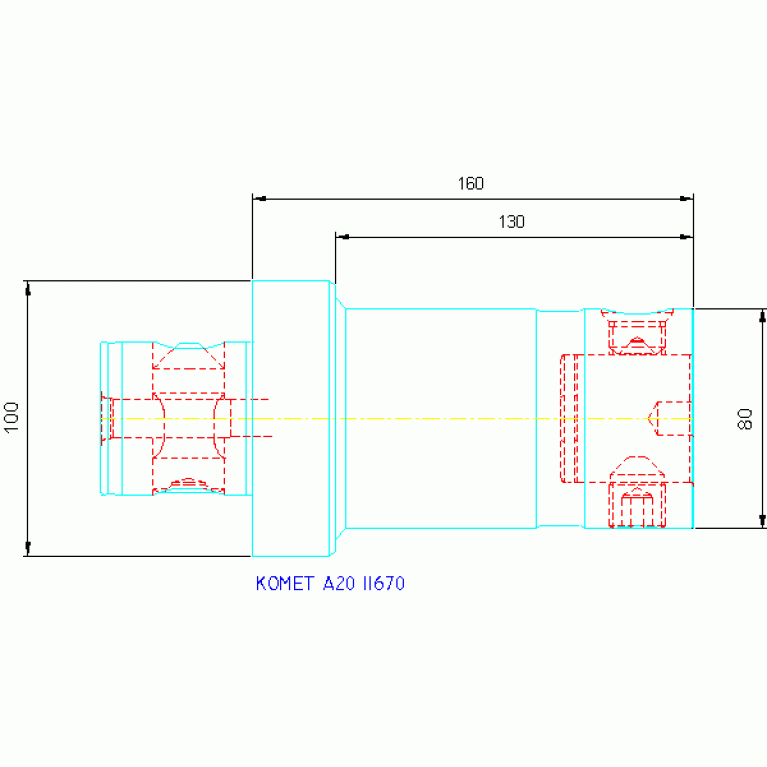

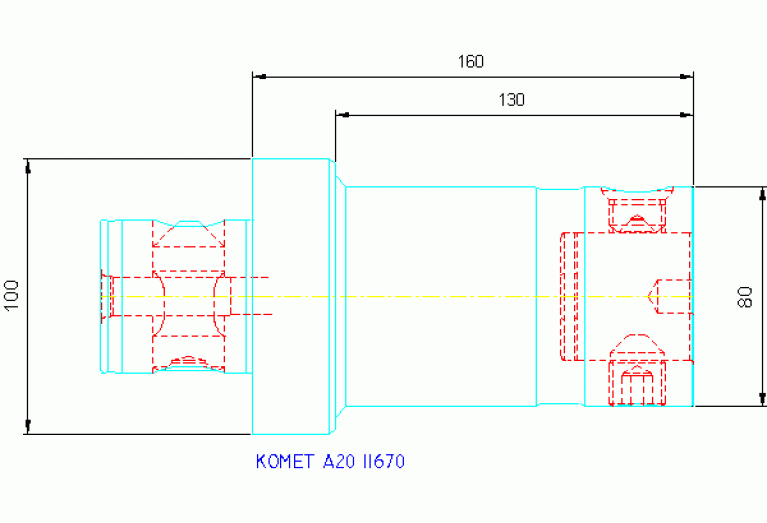

Главная Каталог продукции Toolunited 15 401-04 - Reducer, primary design A20 11670

A20 11670

Артикул: 1488713

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ABS

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0800

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DIN

ABS10000115

FamilyProducts

Reduzierung Leichtbau ABS 80

HAND Cutting direction

N - Neutral

ID Technical product number

1488713

Interface codes

J6 /

ISYC Subclass

401-04 - Reducer, primary design

LF Functional length

160 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ABS KOMET ABS connection

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0800

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ABS08000115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ABS KOMET ABS connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS10000115

LPR Protruding length

160 mm

LSCN Clamping length minimum

0 mm

Name Identifying order number

A20 11670

OAL Overall length

215 mm

Rotation Rotation indicator

1 - rotating tool

WT Weight of item

5 kg
