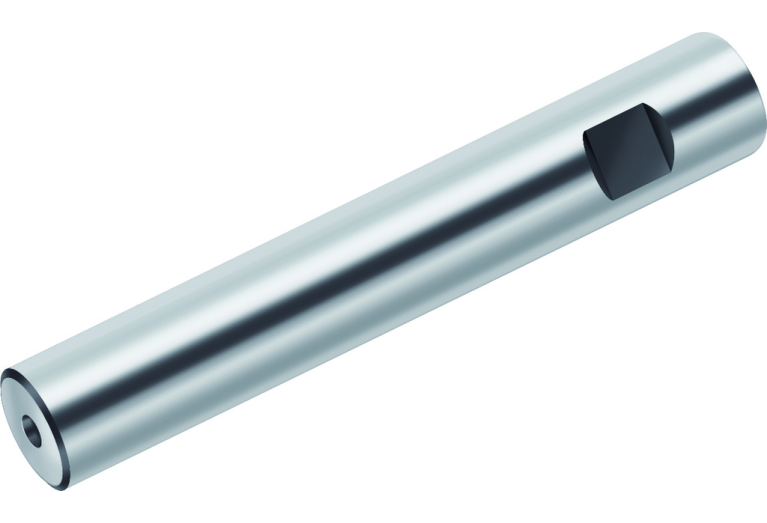

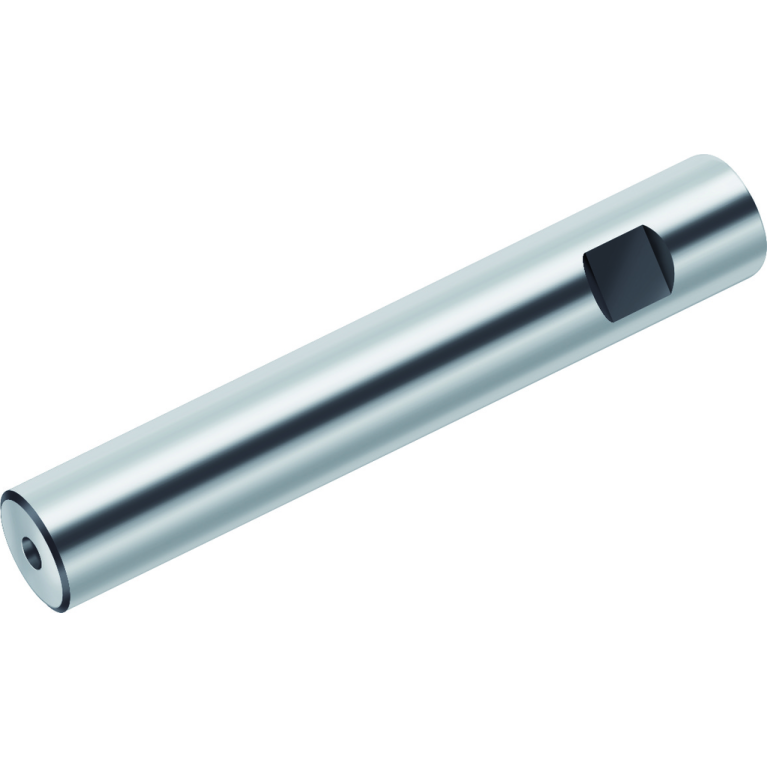

Главная Каталог продукции Toolunited 15 401-04 - Reducer, primary design A175.0.20.090.08

A175.0.20.090.08

A175.0.20.090.08 A175.0.20.090.08 A175.0.20.090.08

A175.0.20.090.08

Walter
Артикул: 5007057
В наличии
В корзину
Описание
Характеристики

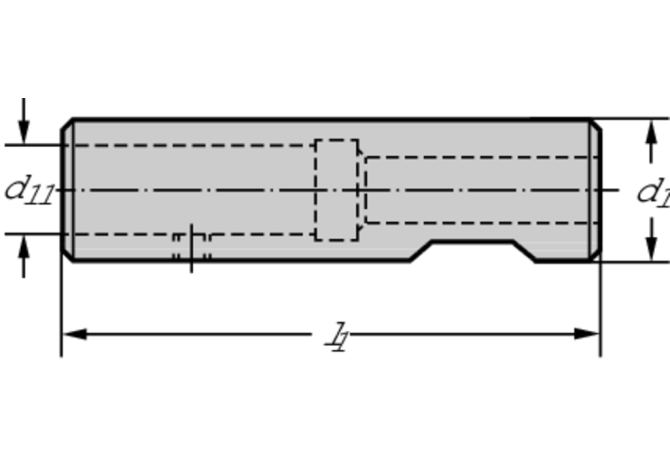

BD Body diameter
20 mm
CCFWS Form
10
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0080
DCONWS Diameter
8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02001005
FamilyProducts
DIN 1835 B milling cutter extension A175
ID Technical product number
5007057
Interface codes
J6 / J61
ISO
ZYL10G2000h$06
ISYC Subclass
401-04 - Reducer, primary design
KAP Kappa
0 Degree
LB Body length 1
41 mm
LF Functional length
65 mm
LOC-01 CCFWS Form
10
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
0 Metric
LOC-01 CZCWS Size code
0080
LOC-01 DCONWS Diameter
8 mm
LOC-01 ISO
ZYL10F8000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00801005
LOC-02 CCFWS Form
10
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
0 Metric
LOC-02 CZCWS Size code
0080
LOC-02 DCONWS Diameter
8 mm
LOC-02 ISO
ZYL10R3149****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL00801805
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10G2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001005
LPR Protruding length
40 mm
LS Shank length
50 mm
LSCX Clamping length maximum
50 mm
Name Identifying order number
A175.0.20.090.08
OAL Overall length
90 mm
RPMX Rotational speed maximum
50000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCON ISO-tolerance class connection bore diameter
h6
TCDCONMS ISO-tolerance class shank diameter
h6
WT Weight of item
0.19 kg
