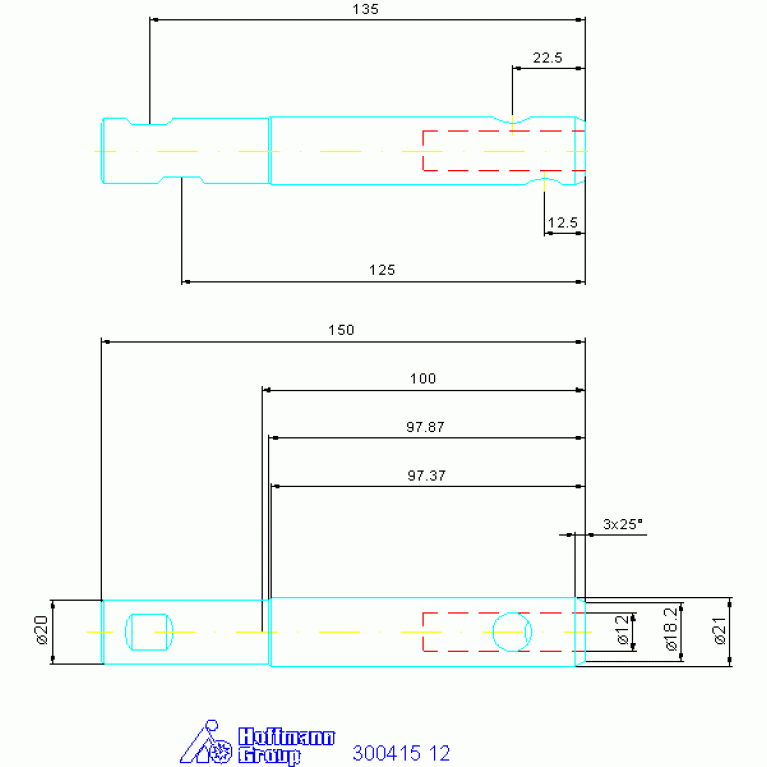

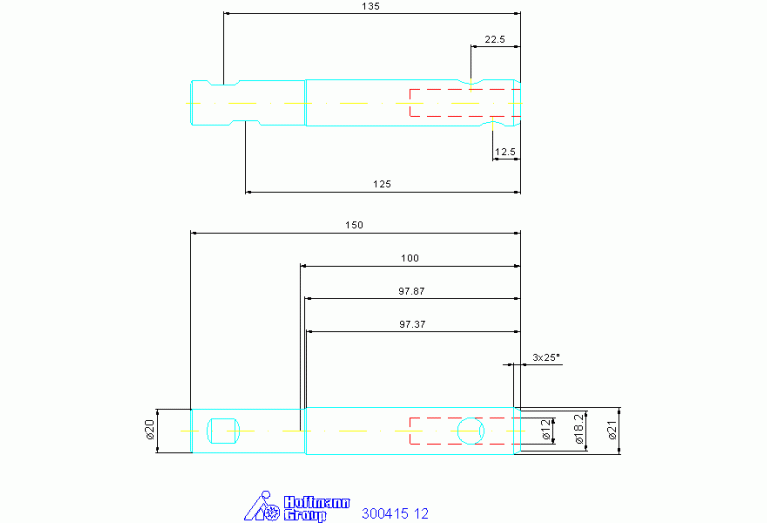

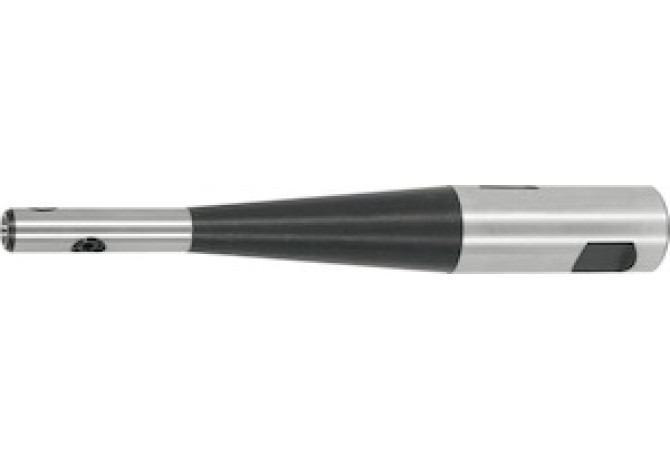

Главная Каталог продукции Toolunited 15 401-04 - Reducer, primary design 300415 12

300415 12

Артикул: 300415 12

В наличии

В корзину

Описание

Характеристики

BD Body diameter

21 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0120

DCONWS Diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02001015

FamilyProducts

GARANT Holder for Weldon shanks, cylindrical, slim

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-04 - Reducer, primary design

LB Body length 1

100 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0120

LOC-01 DCONWS Diameter

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01201015

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001015

LPR Protruding length

100 mm

LS Shank length

50 mm

LSCX Clamping length maximum

49 mm

Name Identifying order number

300415 12

OAL Overall length

150 mm

TA Taper angle

25 Degree

WT Weight of item

0.292 kg
