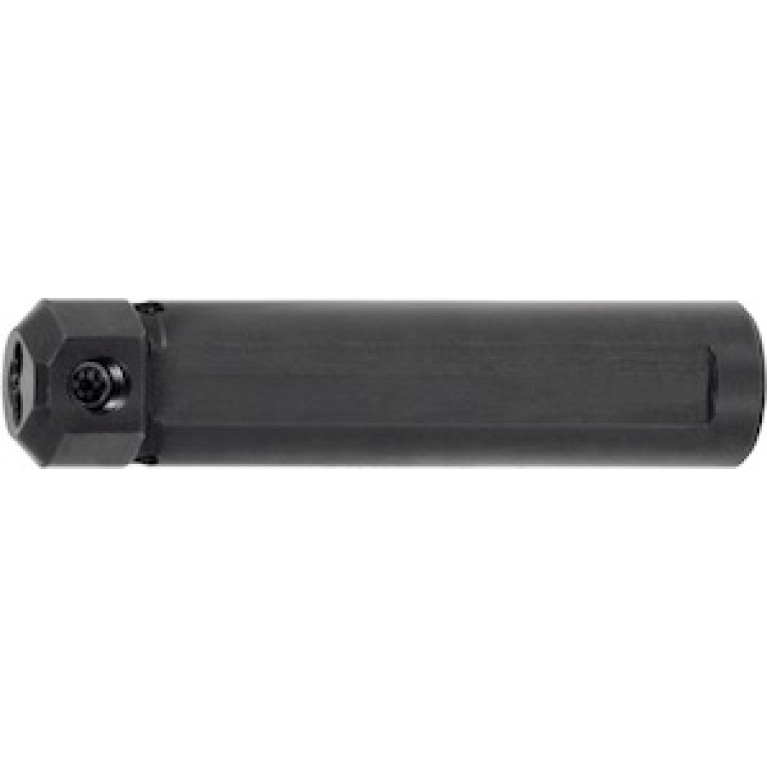

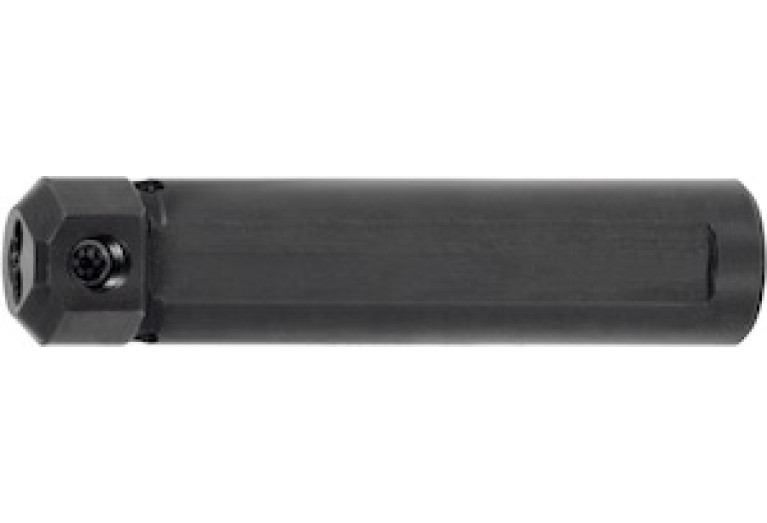

Главная Каталог продукции Toolunited 15 401-04 - Reducer, primary design 270204 12

270204 12

Артикул: 270204 12

В наличии

В корзину

Описание

Характеристики

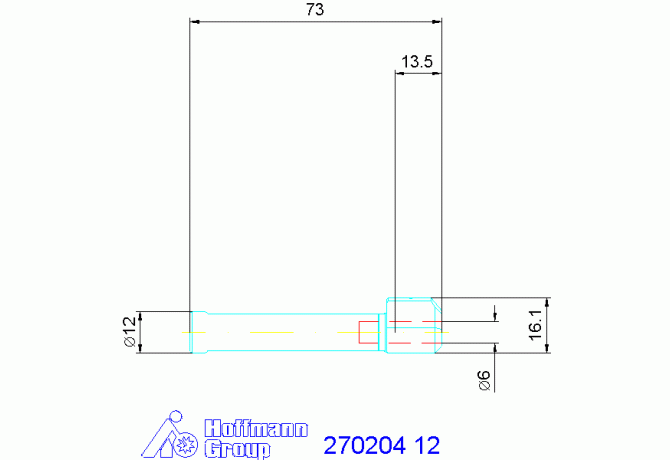

BD Body diameter

16 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0060

DCONWS Diameter

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01202215

FamilyProducts

GARANT Cutter holder

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-04 - Reducer, primary design

LB Body length 1

16 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0060

LOC-01 DCONWS Diameter

6 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

HOG-MICROT6

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202215

LPR Protruding length

13.5 mm

LS Shank length

56.5 mm

LSCX Clamping length maximum

24 mm

Name Identifying order number

270204 12

OAL Overall length

70 mm

WT Weight of item

0.041 kg
