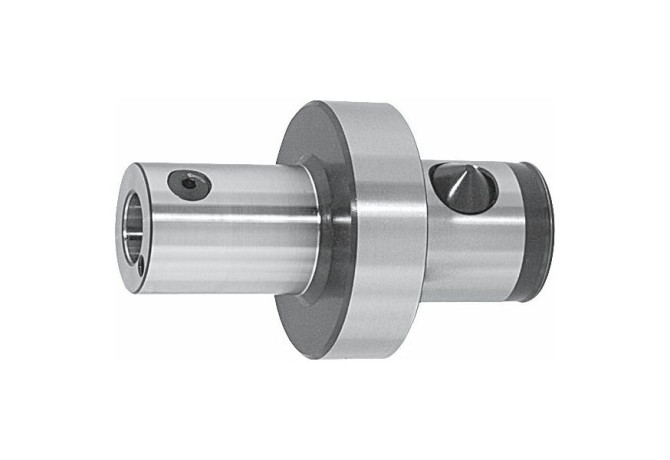

Главная Каталог продукции Toolunited 15 401-04 - Reducer, primary design 239040 40

239040 40

Артикул: 239040 40

В наличии

В корзину

Описание

Характеристики

BD Body diameter

40 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ABS

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0400

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

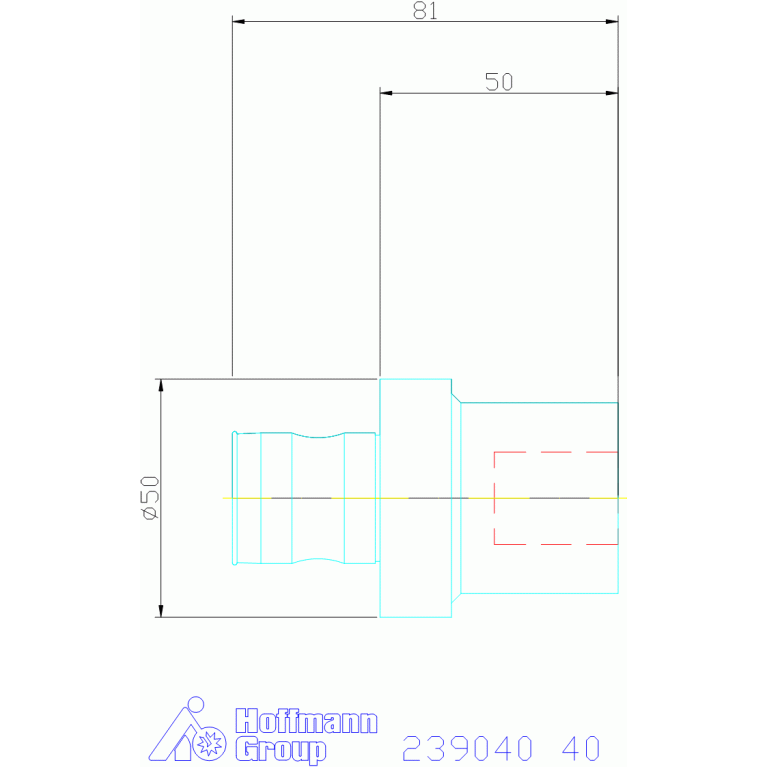

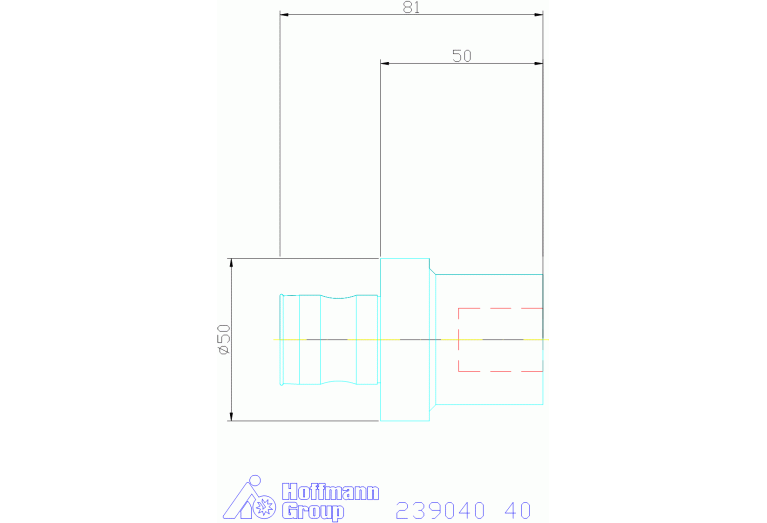

DF Flange diameter

50 mm

DIN

ABS05000115

FamilyProducts

KOMET Reducer ABS 50

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-04 - Reducer, primary design

LB Body length 1

35 mm

LF Functional length

81 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ABS KOMET ABS connection

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0400

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ABS04000115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ABS KOMET ABS connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS05000115

LPR Protruding length

50 mm

Name Identifying order number

239040 40

OAL Overall length

81 mm

WT Weight of item

0.62 kg
