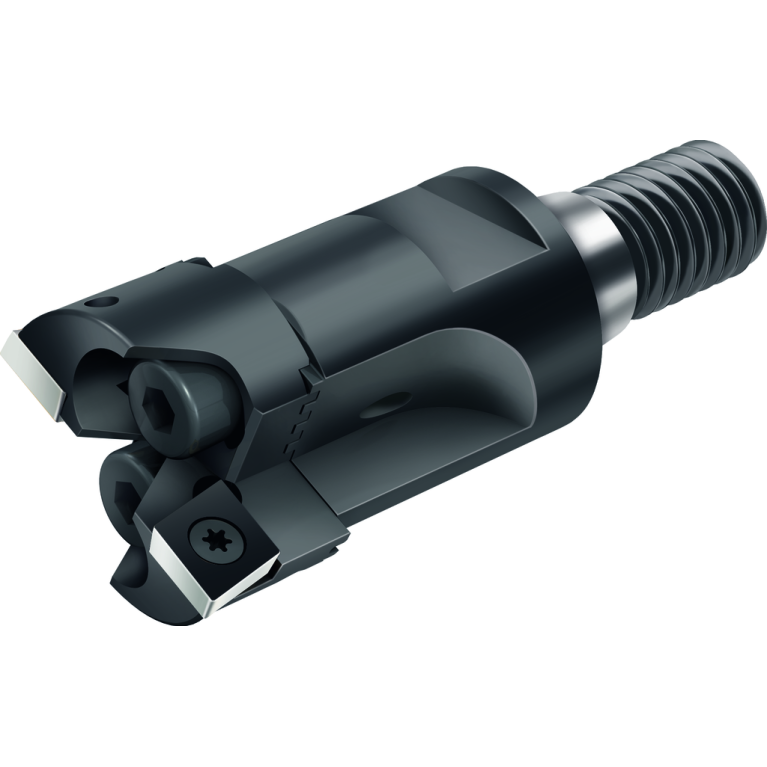

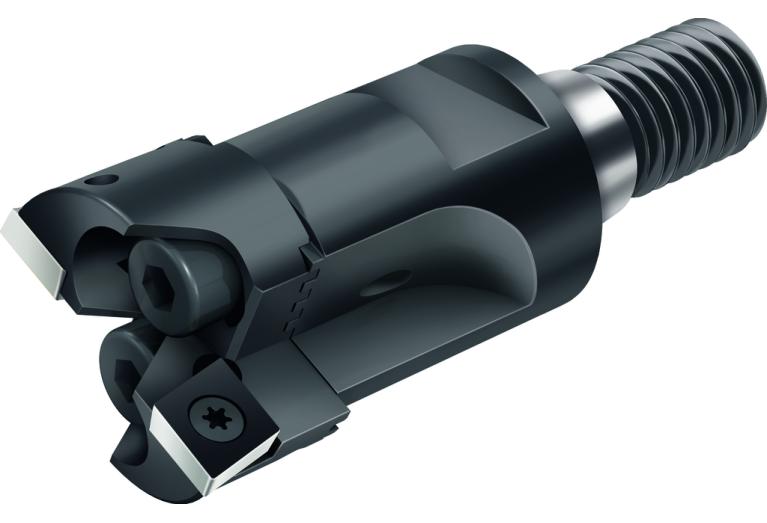

Главная Каталог продукции Toolunited 15 305-16 - Boring head B3221.T18.23-27.Z2.CC06

B3221.T18.23-27.Z2.CC06

Артикул: 5105514

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

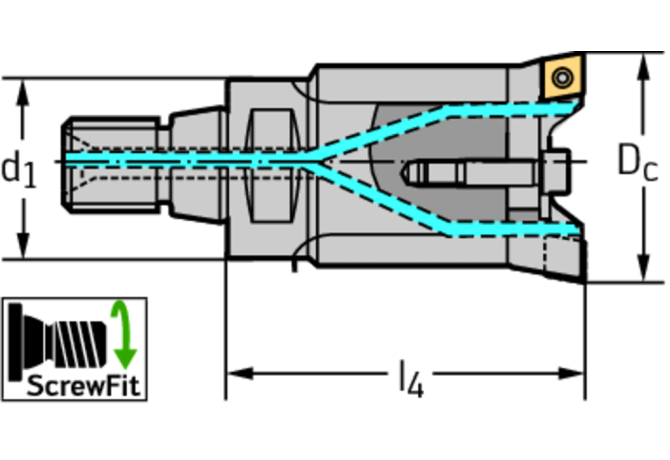

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCN Cutting diameter minimum

23 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

27 mm

Delivery state valid from

12/1/2023

DIN

SAW01800195

DIN CSW1

CC0602083N

FamilyProducts

Double-edged boring tool B3221

HAND Cutting direction

R - Right

ID Technical product number

5105514

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

SAW01C0180$$$$

ISO CSW1

ISO$CC0602003****08

ISYC Subclass

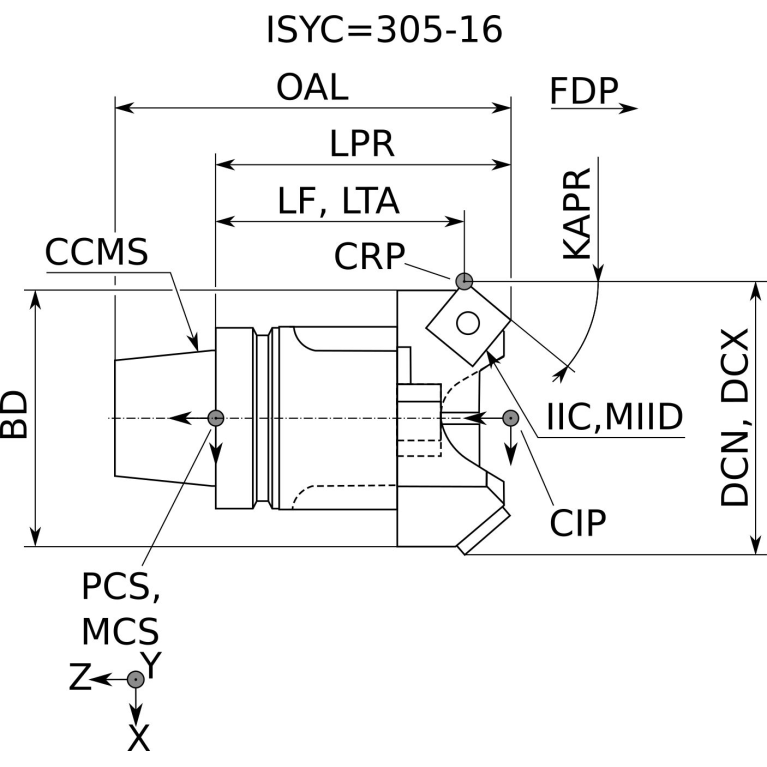

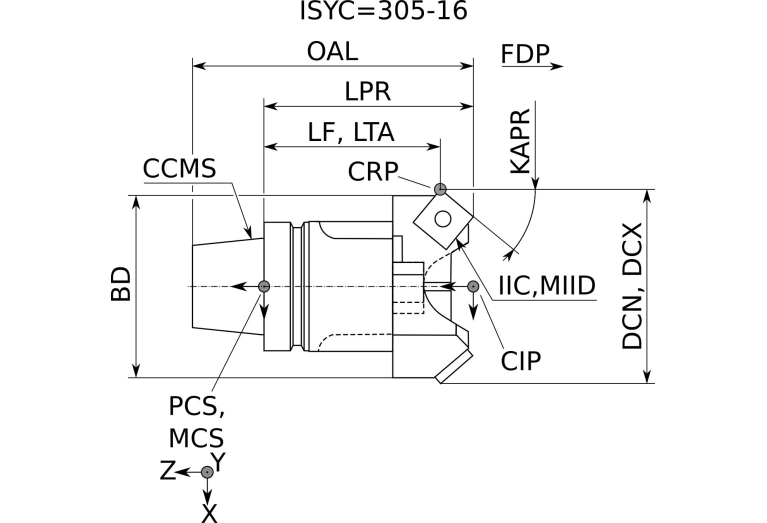

305-16 - Boring head

KAPR Tool cutting edge angle

90 Degree

LF Functional length

35 mm

LOC-01 ISO

ISO$CC0602003****08

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

CC0602083N

LOC-02 ISO

WR$$CC0602**3R*****

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

W-CC0602**3R*****

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0180

LOC-03 DCONMS Diameter

18.5 mm

LOC-03 ISO

SAW01C0180$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW01800195

LPR Protruding length

35 mm

Name Identifying order number

B3221.T18.23-27.Z2.CC06

OAL Overall length

56 mm

RPMX Rotational speed maximum

12000 1/min

Working process

BAB - Open by boring

WT Weight of item

0.076 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
