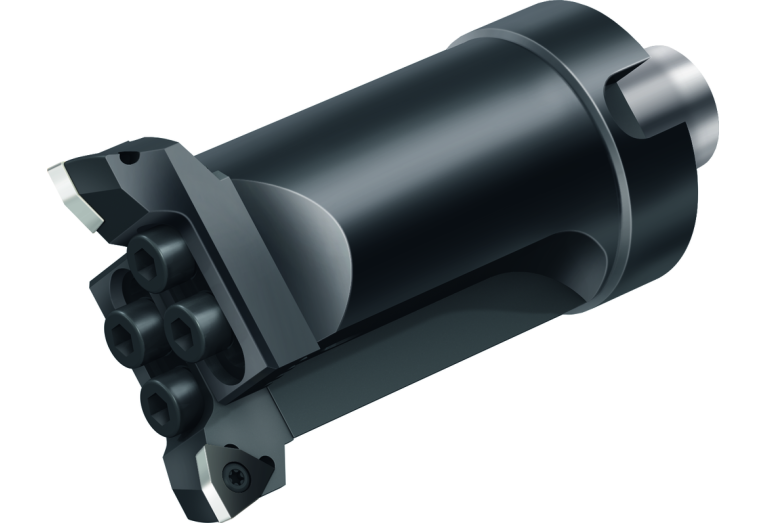

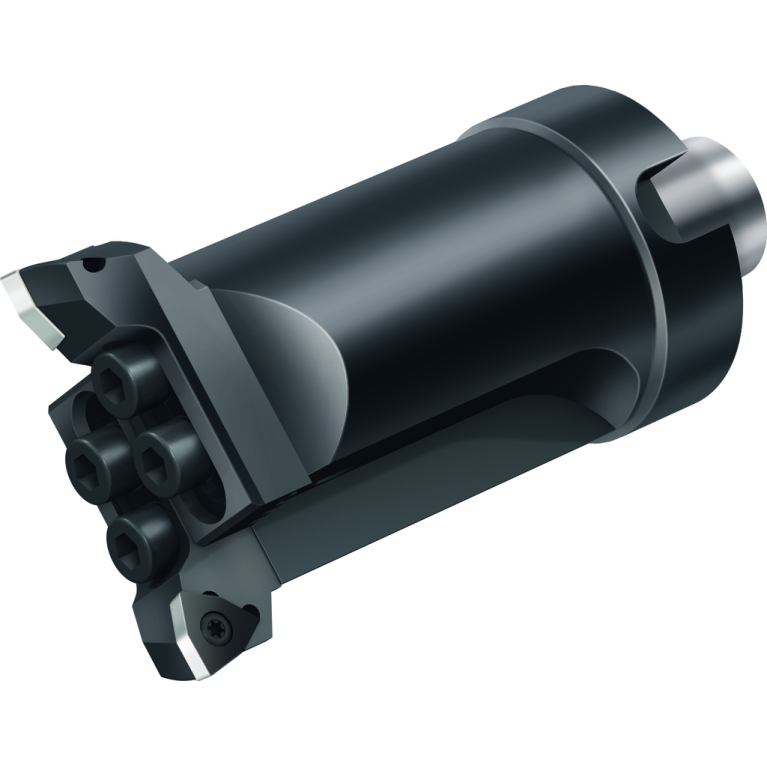

Главная Каталог продукции Toolunited 15 305-16 - Boring head B3220.N8.090-110.Z2.WC08

B3220.N8.090-110.Z2.WC08

Артикул: 5007822

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCN Cutting diameter minimum

90 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

110 mm

Delivery state valid from

12/1/2023

DIN

NCT08000195

DIN CSW1

WC0804993N

FamilyProducts

Double-edged boring tool B3220

HAND Cutting direction

R - Right

ID Technical product number

5007822

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

NCT01C0800$$$$

ISO CSW1

ISO$WC0804003******

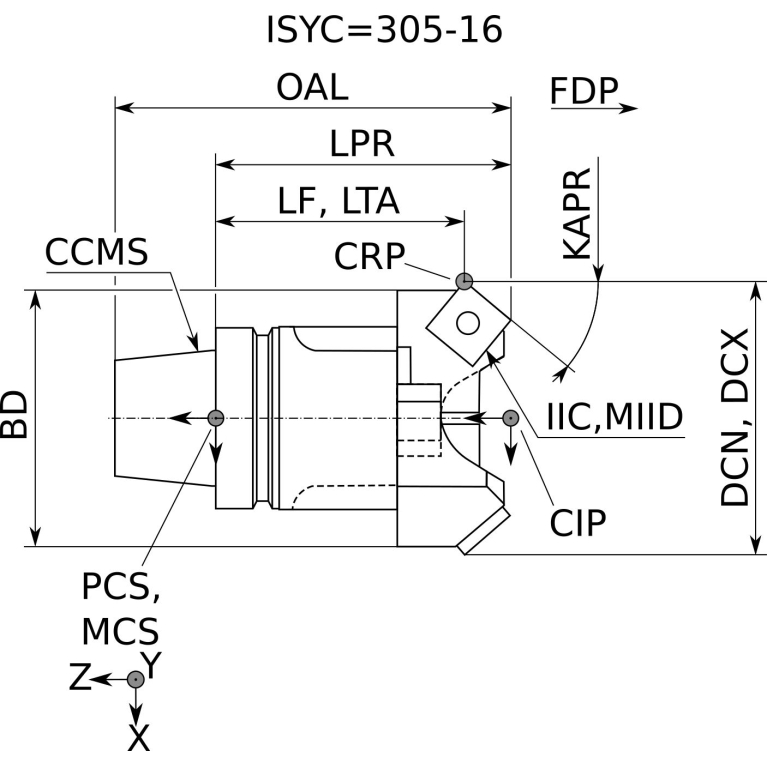

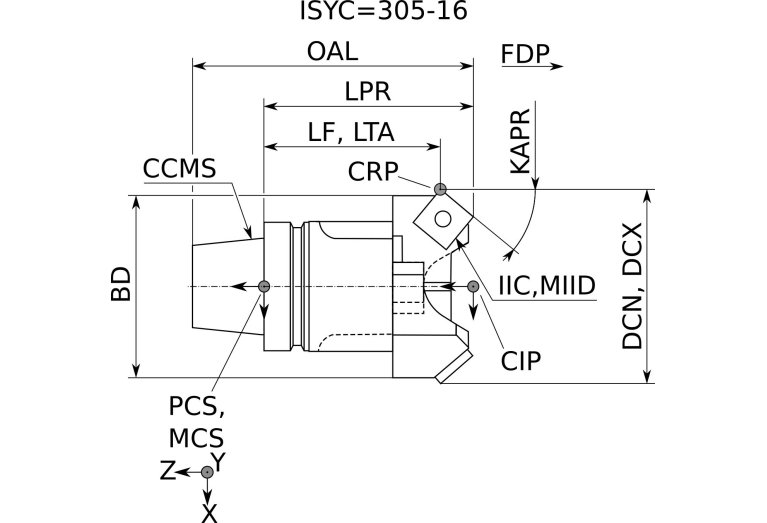

ISYC Subclass

305-16 - Boring head

KAPR Tool cutting edge angle

90 Degree

LF Functional length

100 mm

LOC-01 ISO

ISO$WC0804003******

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

WC0804993N

LOC-02 ISO

WR$$WC0804**3******

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

W-WC0804**3******

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0800

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

NCT01C0800$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT08000195

LPR Protruding length

100 mm

Name Identifying order number

B3220.N8.090-110.Z2.WC08

OAL Overall length

118 mm

RPMX Rotational speed maximum

4524 1/min

Working process

No working processes available

WT Weight of item

2.9 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
