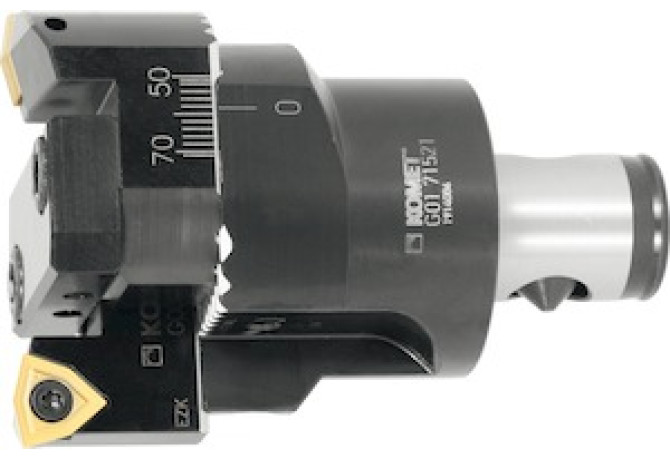

Главная Каталог продукции Toolunited 15 305-16 - Boring head 236680 83-124

236680 83-124

Артикул: 236680 83-124

В наличии

В корзину

Описание

Характеристики

BDX Body diameter maximum

63 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCN Cutting diameter minimum

83 mm

DCP Data chip provision

0 - Without data chip

DCPSN Presetting cutting diameter smaller

63 mm

DCPSX Presetting cutting diameter greater

81 mm

DCX Cutting diameter maximum

124 mm

Delivery state valid from

1/11/2017

DIN

ABS06300115

FamilyProducts

KOMET Base body for twin boring head without axial adjustmen

Interface codes

J6 /

ISYC Subclass

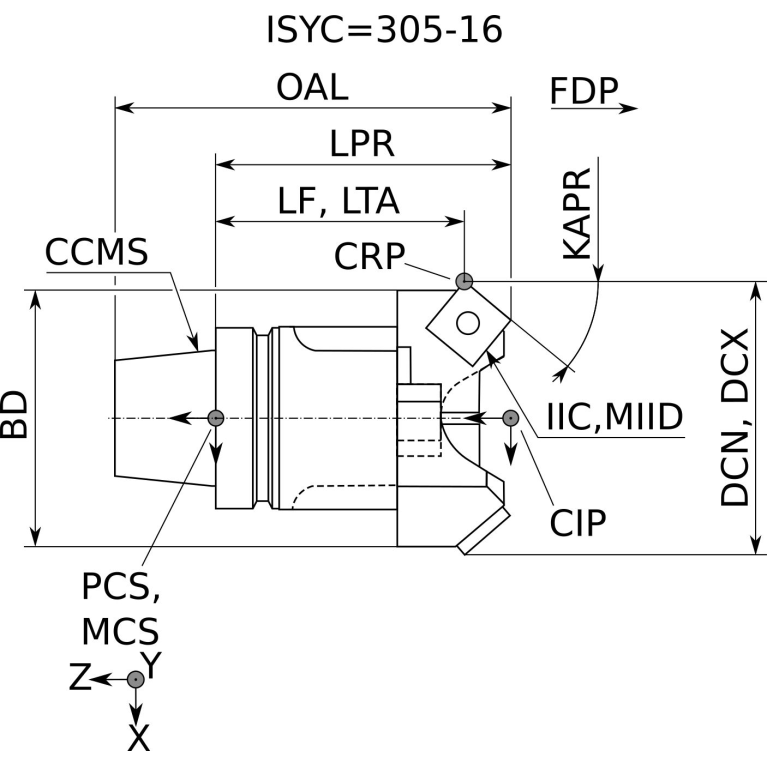

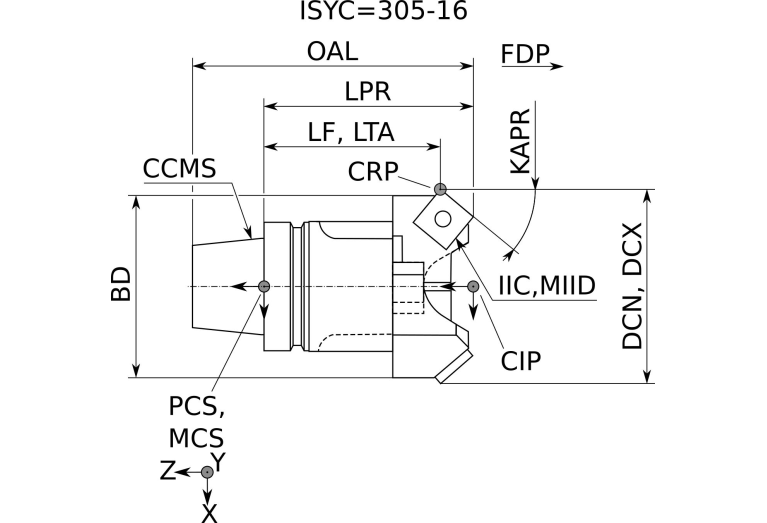

305-16 - Boring head

LF Functional length

36.84 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FLA08300207

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ABS KOMET ABS connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS06300115

LPR Protruding length

36.84 mm

Name Identifying order number

236680 83-124

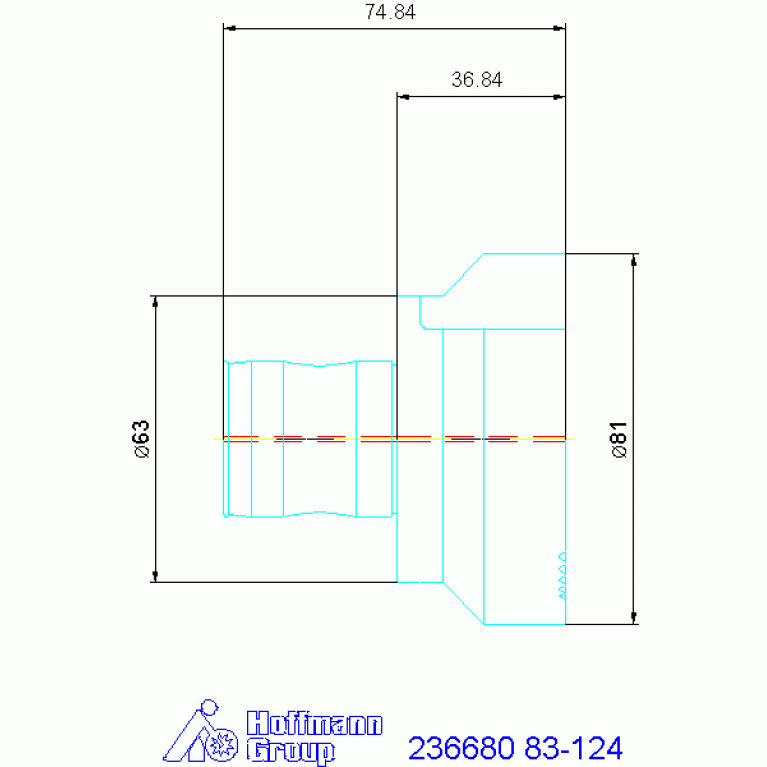

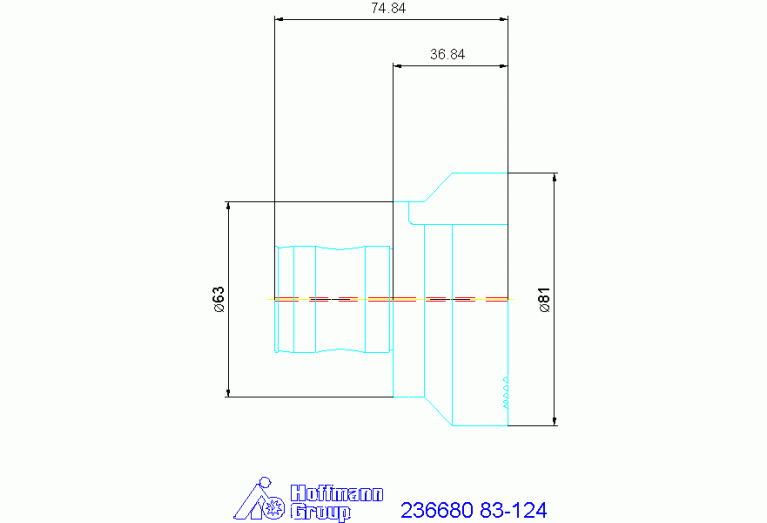

OAL Overall length

74.84 mm

Working process

No working processes available

WT Weight of item

1.355 kg
