MSS-E25L25-FX4.1

Артикул: 5009677

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CDX Cutting depth maximum

25 mm

COMPC Company code

W - Walter

CW Cutting width

4.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

W-FX004100*******

FamilyProducts

Grooving module – Radial grooving MSS...E...

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

5009677

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

WR$$FX004100*******

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

52 mm

LPR Protruding length

26 mm

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

MSS-E25L25-FX4.1

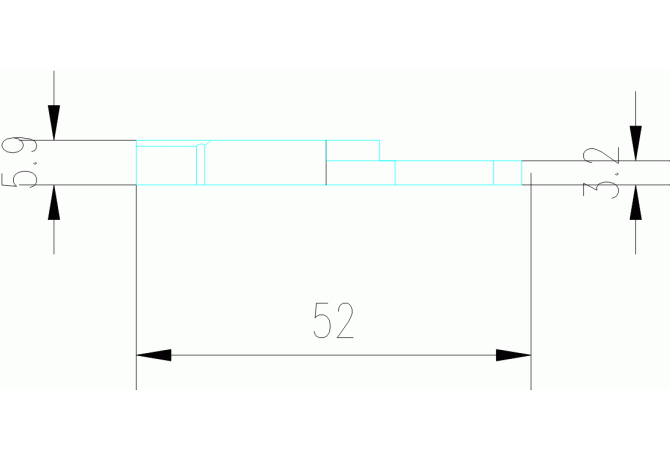

OAL Overall length

52 mm

WB Body width

3.2 mm

WF Functional width

4.3 mm

Working process

DDA - External turning,DEA - Outer diameter grooving,ESA - Cutting off

WT Weight of item

0.052 kg
