MSS-E20L20-FX2.2

Артикул: 5009667

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CDX Cutting depth maximum

20 mm

COMPC Company code

W - Walter

CW Cutting width

2.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

W-FX002200*******

FamilyProducts

Grooving module – Radial grooving MSS...E...

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

16 mm

ID Technical product number

5009667

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

WR$$FX002200*******

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

42 mm

LPR Protruding length

21 mm

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

MSS-E20L20-FX2.2

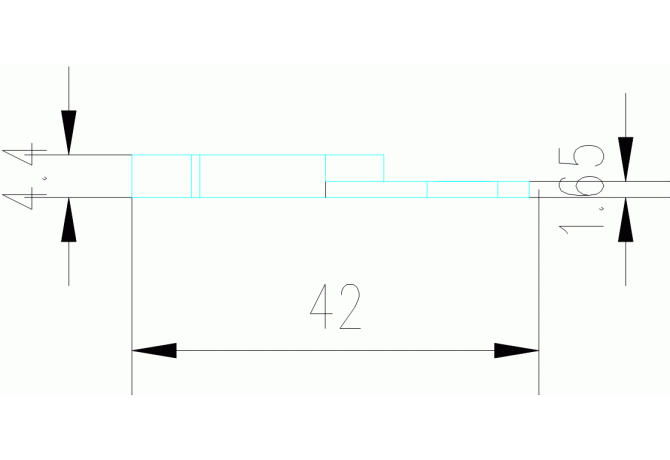

OAL Overall length

42 mm

WB Body width

1.65 mm

WF Functional width

3.575 mm

Working process

DDA - External turning,DEA - Outer diameter grooving,ESA - Cutting off

WT Weight of item

0.032 kg
