G2042.52N-8T100SX-P

Артикул: 6830207

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CDX Cutting depth maximum

100 mm

COMPC Company code

W - Walter

CW Cutting width

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

PMW05200195

DIN CSW1

W-SX008000*******

FamilyProducts

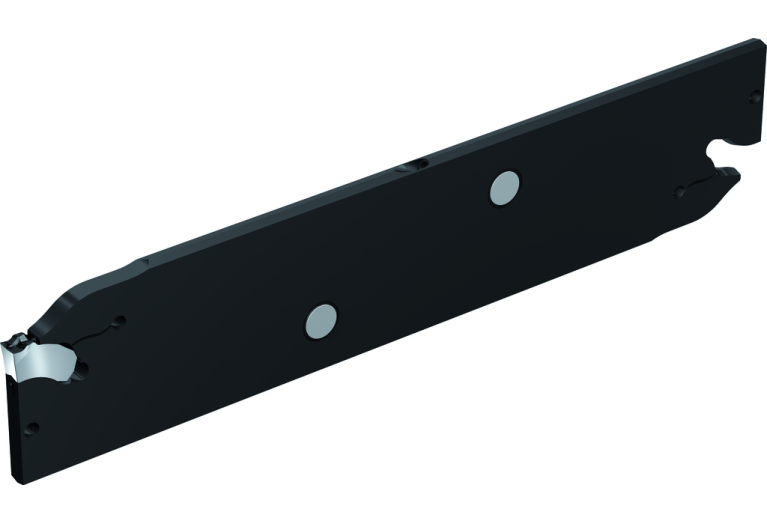

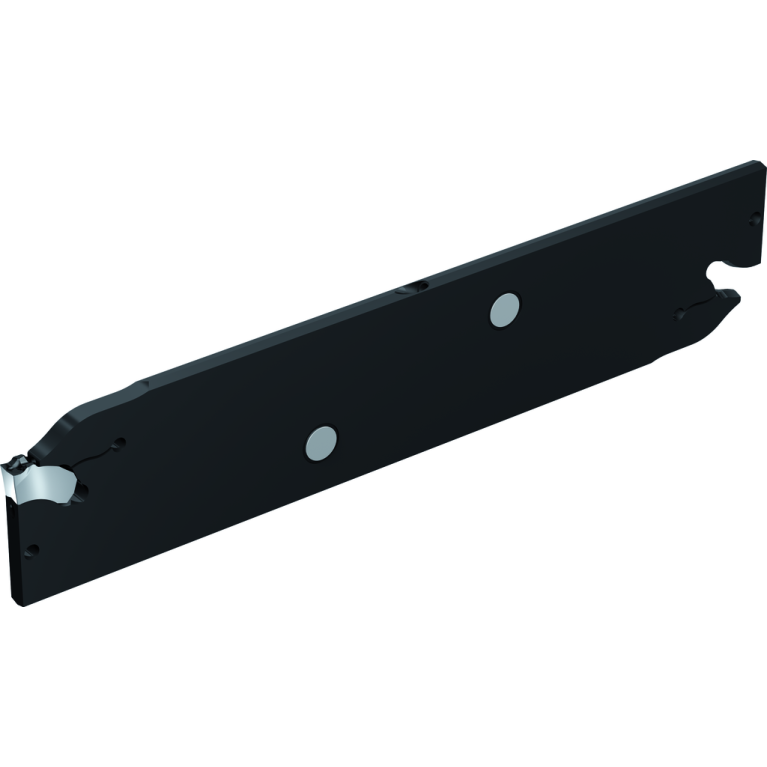

Deep parting blade G2042...N...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

N - Neutral

HF Functional height

0 mm

ID Technical product number

6830207

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

PMW01C0520$$00

ISO CSW1

WR$$SX008000*******

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

251.4 mm

LOC-03 B Shank width

6.8 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

PMW Prism mounting WOHLHAUPTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0520

LOC-03 DCONMS Diameter

52 mm

LOC-03 H Shank height

52 mm

LOC-03 ISO

PMW01C0520$$00

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

PMW05200195

LPR Protruding length

125.7 mm

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

G2042.52N-8T100SX-P

OAL Overall length

251.4 mm

THSC Tool holder shape code

G - straight shank design

WB Body width

6.8 mm

Working process

DDA - External turning,DEA - Outer diameter grooving,ESA - Cutting off

WT Weight of item

0.655 kg
