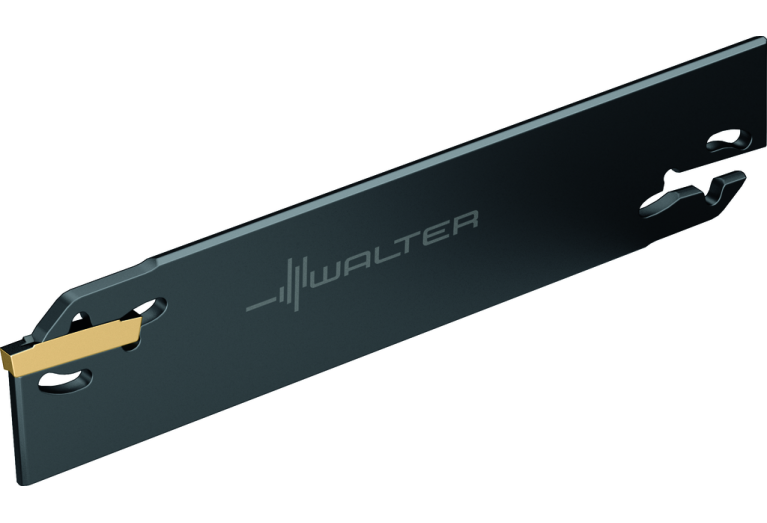

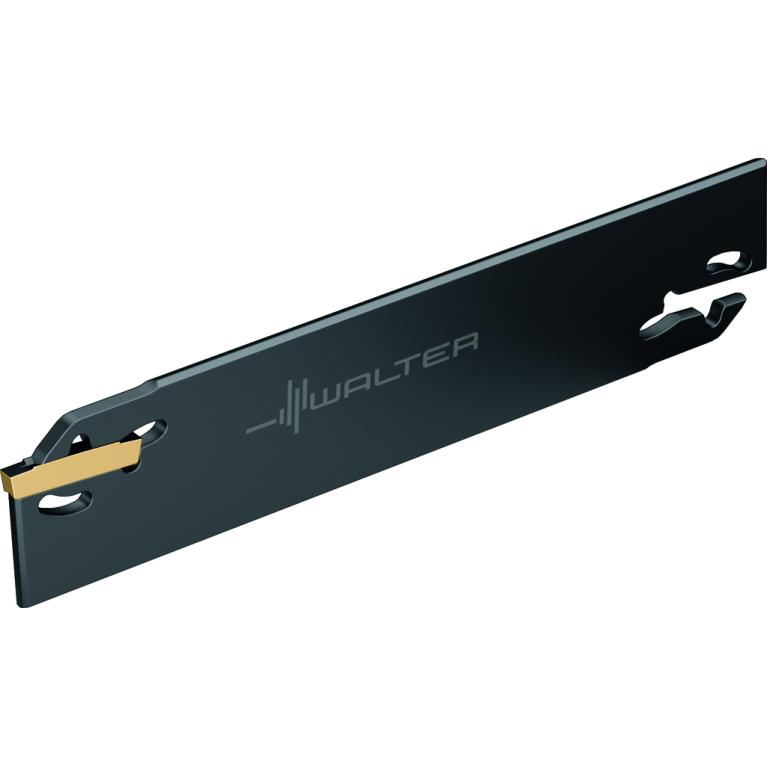

Главная Каталог продукции Toolunited 15 314-00 - Cartridge for indexable insert unspecified G1042.32N-5T60GX24

G1042.32N-5T60GX24

G1042.32N-5T60GX24 G1042.32N-5T60GX24 G1042.32N-5T60GX24

G1042.32N-5T60GX24

Walter
Артикул: 5887960
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel

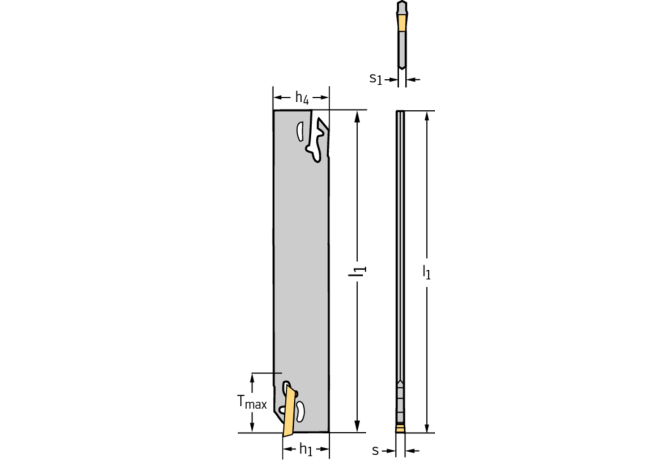

CDX Cutting depth maximum
60 mm
COMPC Company code
W - Walter
CW Cutting width
5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
PMW03200185
DIN CSW1
W-GX243050***EX50
FamilyProducts
Deep parting blade G1042
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
0 mm
ID Technical product number
5887960
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
PMW01C0320$$00
ISO CSW1
WR$$GX243050***EX50
ISYC Subclass
314-00 - Cartridge for indexable insert unspecified
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
149.3 mm
LOC-03 B Shank width
3.9 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
PMW Prism mounting WOHLHAUPTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
32 mm
LOC-03 ISO
PMW01C0320$$00
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
PMW03200185
LPR Protruding length
75 mm
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
G1042.32N-5T60GX24
OAH Overall height
32 mm
OAL Overall length
149.3 mm
THSC Tool holder shape code
G - straight shank design
WB Body width
3.9 mm
Working process
DEA - Outer diameter grooving,ESA - Cutting off
WT Weight of item
0.137 kg
