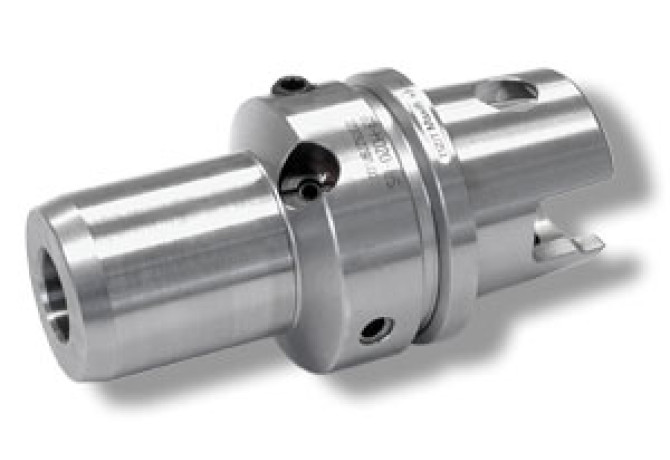

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric UT40-HD06-65

UT40-HD06-65

UT40-HD06-65 UT40-HD06-65

UT40-HD06-65

Ceratizit
Артикул: UT40-HD06-65
В наличии
В корзину
Описание
Характеристики
BD Body diameter
26 mm
BD Body diameter 2
40 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0060
DCONWS Diameter
6 mm
DCP Data chip provision
0 - Without data chip
DIN
UTS04000195
FamilyProducts
Maxiflex UTS expansion chuck
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
30 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0060
LOC-01 DCONWS Diameter
6 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00600115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
UTS Widaflex connection WIDIA
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
UTS04000195
LPR Protruding length
65 mm
LSCN Clamping length minimum
27 mm
LSCX Clamping length maximum
37 mm
Name Identifying order number
UT40-HD06-65
OAL Overall length
90 mm
RPMX Rotational speed maximum
15000 1/min
