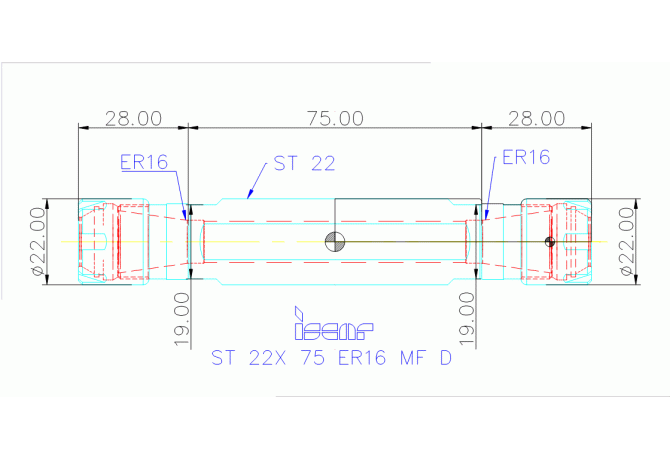

ST 22X 75 ER16 MF D

ST 22X 75 ER16 MF D ST 22X 75 ER16 MF D

ST 22X 75 ER16 MF D

Iscar
Артикул: 4502013
В наличии
В корзину
Описание
Характеристики
BD Body diameter
22 mm
CCFWS Connection code form
02
CCONWS Connection count workpiece side
2
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL02201015
DLN Diameter lock nut
22 mm
FamilyProducts
ST 22X 75 ER16 MF D
HAND Cutting direction
N - Neutral
ID Technical product number
4502013
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600295
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02201015
Name Identifying order number
ST 22X 75 ER16 MF D
