Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric SMH MB63-1

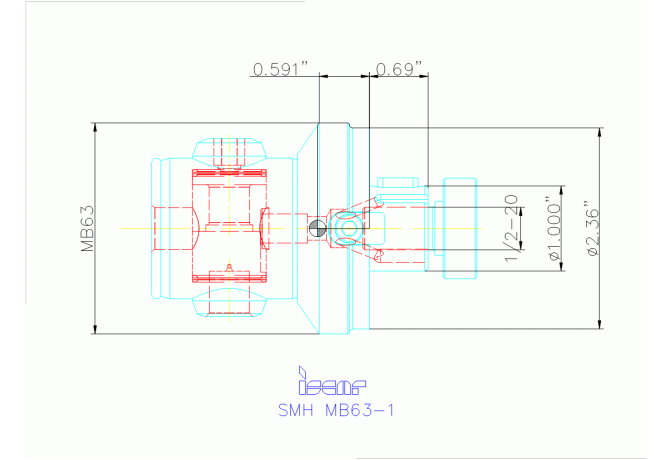

SMH MB63-1

Артикул: 4550213

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

8 - Axial concentrical or peripheral/decentralized adjustable

CZCWS Connection size code

1000

DCONWS Diameter

25.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

IMB06300195

FamilyProducts

SMH MB63-1

HAND Cutting direction

R - Right

ID Technical product number

4550213

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

3 Inch with coolant

LOC-01 CZCWS Connection size code

1000

LOC-01 DCONWS Diameter

25.4 mm

LOC-01 ISO

FDA02G2540H$07

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA10000230

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

IMB Iscar MB modular connection system

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IMB06300195

Name Identifying order number

SMH MB63-1
