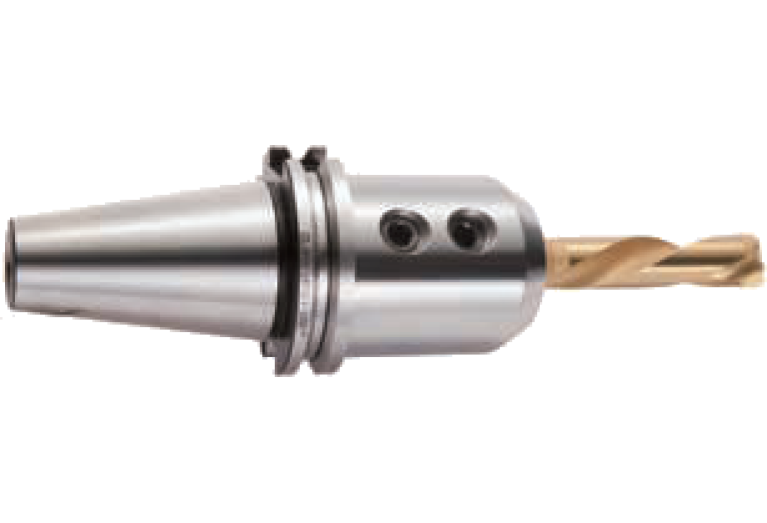

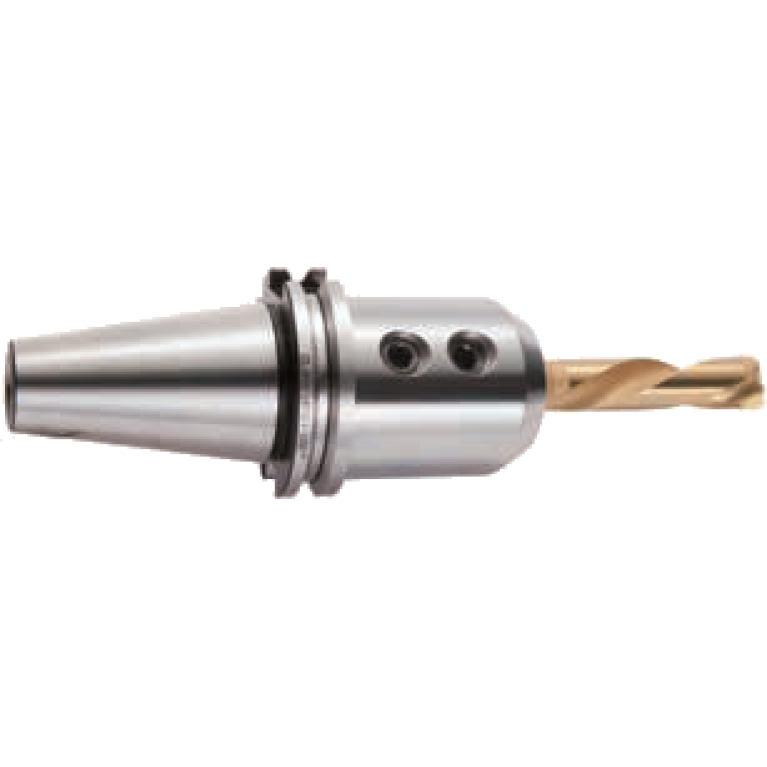

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric SK50-SLW32-105

SK50-SLW32-105

SK50-SLW32-105 SK50-SLW32-105 SK50-SLW32-105

SK50-SLW32-105

Korloy
Артикул: 6-01-008618
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
72 mm
BLDEV Balancing device
0
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCONWS Diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
SKG05000195
FamilyProducts
SK-SLW
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-008618
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
105 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03200115
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05000195
LPR Protruding length
105 mm
LSCX Clamping length maximum
60 mm
Name Identifying order number
SK50-SLW32-105
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
WT Weight of item
4.9 kg
