Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric SK50-DHE16-90

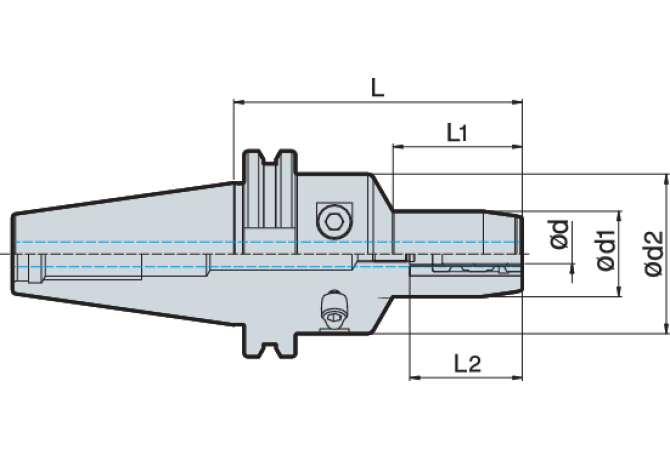

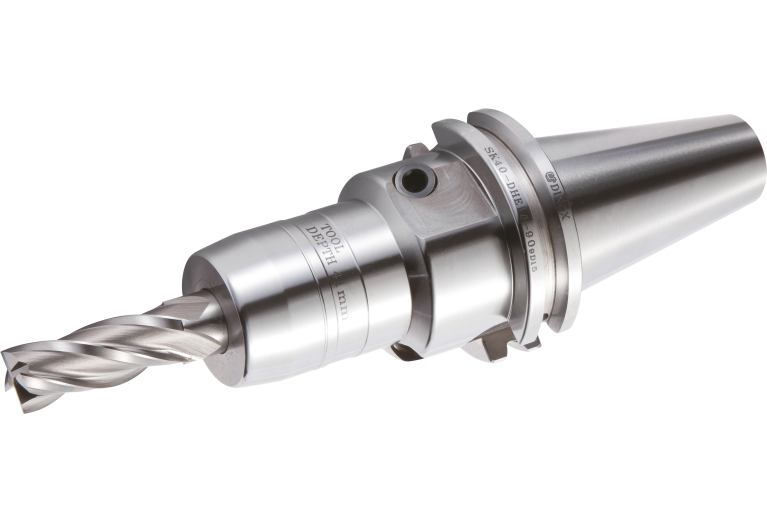

SK50-DHE16-90

SK50-DHE16-90 SK50-DHE16-90 SK50-DHE16-90

SK50-DHE16-90

Korloy
Артикул: 6-01-010576
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
40 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DF Flange diameter
49.5 mm
DIN
SKG05001195
FamilyProducts
SK-DHE
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-010576
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
34 mm
LF Functional length
90 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600105
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001195
LPR Protruding length
90 mm
LSCN Clamping length minimum
46 mm
LSCX Clamping length maximum
56 mm
Name Identifying order number
SK50-DHE16-90
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
WT Weight of item
4.1 kg
