Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric S42-DTN22-130

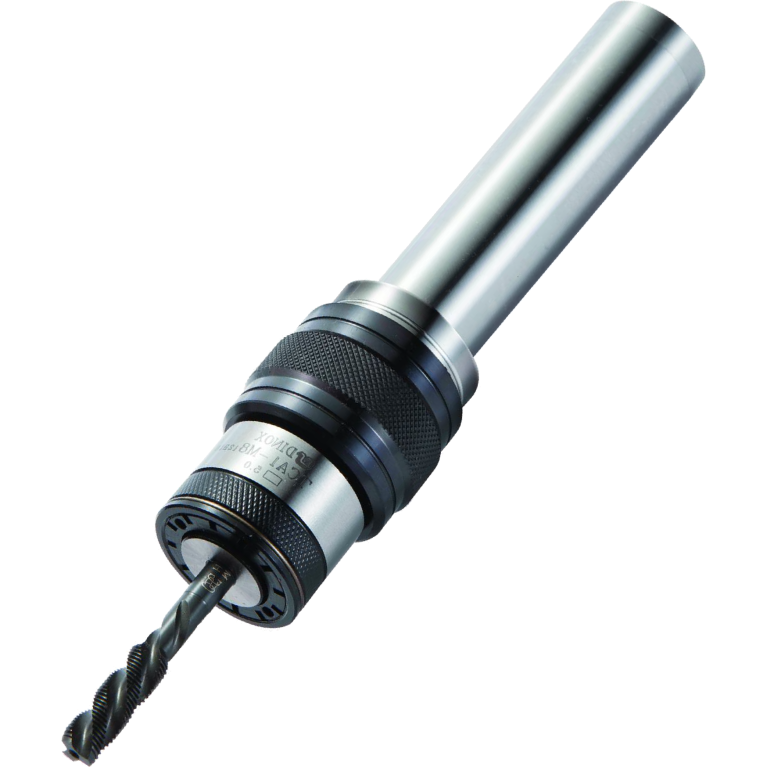

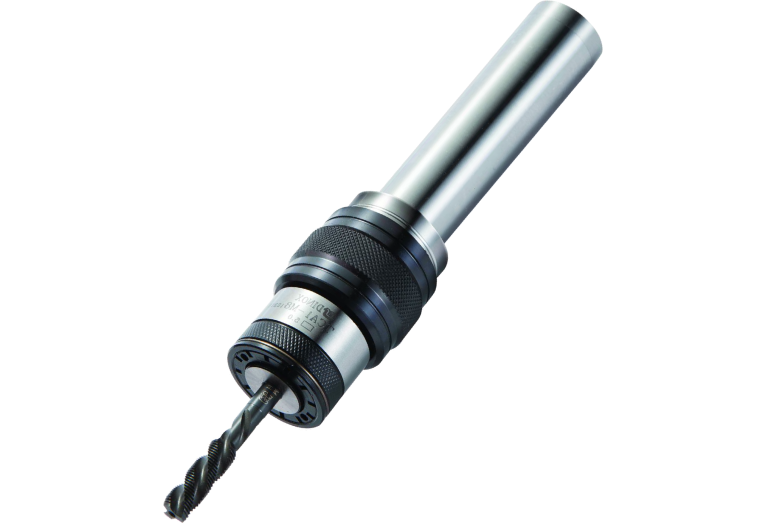

S42-DTN22-130

S42-DTN22-130 S42-DTN22-130 S42-DTN22-130

S42-DTN22-130

Korloy
Артикул: 6-01-014848
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
50 mm
BD Body diameter 2
53 mm
BLDEV Balancing device
0
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SWB
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0310
DCONWS Diameter
31 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
ZYL04200105
FamilyProducts
S-DTN
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-014848
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LCOMP Length compensation for compression
12.5 mm
LF Functional length
96 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SWB Quick change adapter BILZ
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0310
LOC-01 DCONWS Diameter
31 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SWB03100105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0420
LOC-03 DCONMS Diameter
42 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04200105
LPR Protruding length
130 mm
LTENS Length compensation for tension
12.5 mm
Name Identifying order number
S42-DTN22-130
OAL Overall length
210 mm
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
